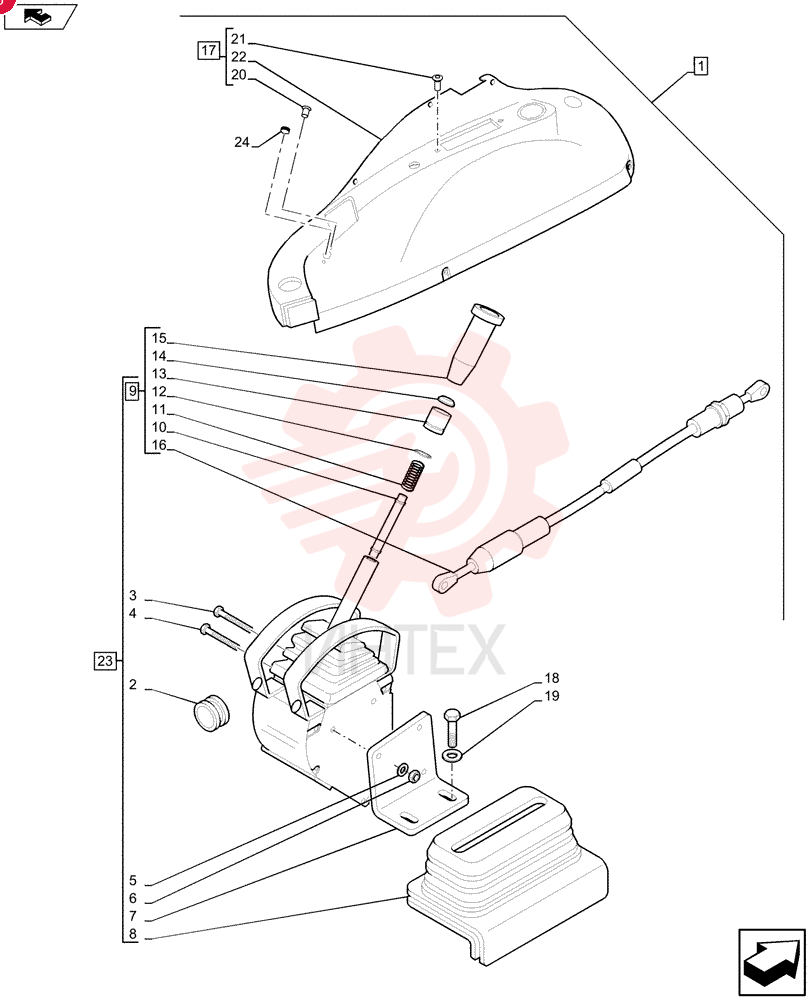

KIT 741382059 (2)
1 741382059
- 741382059 - KIT
2 10398680
- 10398680 - GROMMET
- 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk
3 766535
- 766535 - BOLT
- Hex
- M6 x 1 x 65mm
- Cl 8.8
- Full Thd
4 16040621
- 16040621 - BOLT
- Hex
- M6 x 60mm
- Cl 8.8
- Full Thd
5 11193274
- 11193274 - BELLEVILLE WASHER
- M6 Bolt Size x 15mm OD x 1.2mm Thk
6 12574211
- 12574211 - NUT
- M6 x 1
- Cl 8
7 85808419
- 85808419 - SUPPORT
8 85813132
- 85813132 - BOOT
9 84135254
- 84135254 - LEVER ASSY & KNOB
10 87324507
- 87324507 - DIPSTICK
11 85821201
- 85821201 - SPRING
12 87324529
- 87324529 - O-RING
- 15.54mm ID
13 85821200
- 85821200 - PUSH BUTTON
14 87324525
- 87324525 - PLUG
- Red
15 87324512
- 87324512 - HANDLE
16 87325156
- 87325156 - CABLE
- 965mm L
17 87362098
- 87362098 - SOFT TRIM
18 16043624
- 16043624 - SCREW
- Hex
- M8 x 1.25 x 25mm
- Cl 8.8
- Full Thd
19 11193874
- 11193874 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
20 85802259
- 85802259 - THREADED BUSHING
- M4 x 9.7mm OD x 20mm L
21 85805347
- 85805347 - THREADED BUSHING
- M6 x 9.7mm OD x 20mm L
22 NSS
- NSS - NOT SOLD SEPARAT
23 84135215
- 84135215 - LEVER ASSY & KNOB
24 82001909
- 82001909 - PLUG
- 33mm OD
