(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

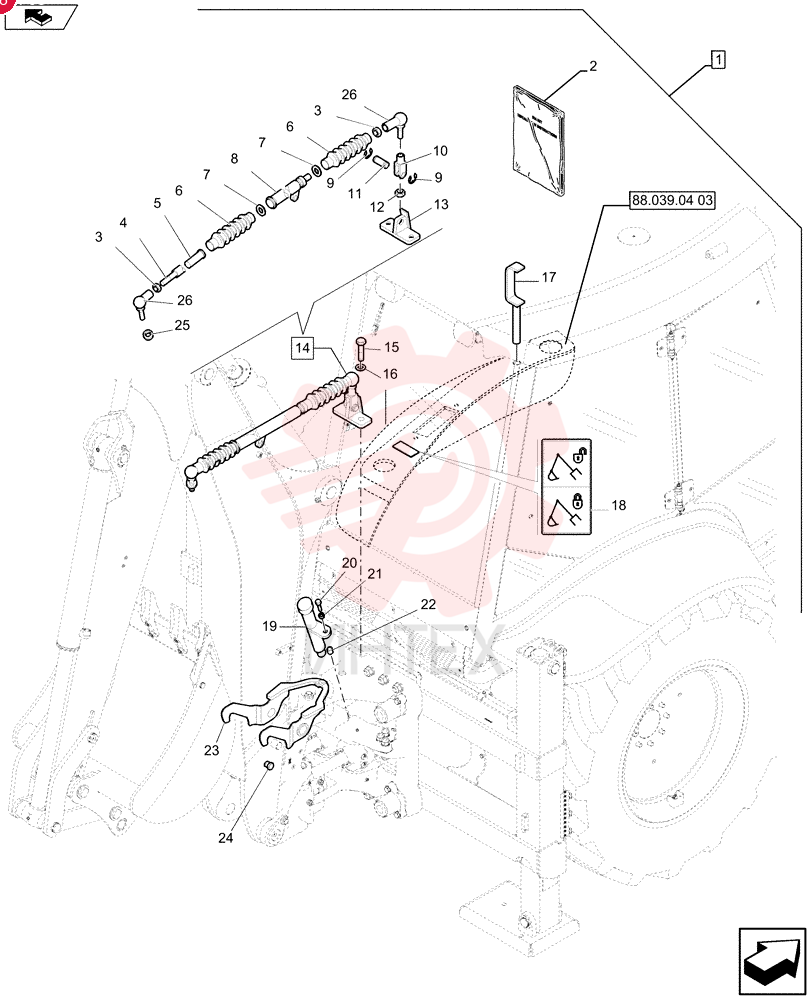

KIT 741382059 (4)

KIT 741382059 (4)

KIT 741382059 (4)

1 741382059

  • 741382059 - KIT

2 84154389

  • 84154389 - INSTRUCTION

3 85819478

  • 85819478 - NUT

4 85819481

  • 85819481 - ROD

5 85819482

  • 85819482 - BUSHING

6 85819479

  • 85819479 - BELLOWS

7 85824227

  • 85824227 - CLAMP

8 85819480

  • 85819480 - TUBE

9 85813407

  • 85813407 - RING

10 85819468

  • 85819468 - CLEVIS

11 87302958

  • 87302958 - CLEVIS PIN

12 85821271

  • 85821271 - NUT

13 85819485

  • 85819485 - BASE

14 87302956

  • 87302956 - TIE-ROD

15 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

16 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

17 87610834

  • 87610834 - PIN
  • 35mm OD x 120mm L

18 85812278

  • 85812278 - DECAL

19 85821268

  • 85821268 - SHOCK ABSORBER

20 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

21 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

22 87475733

  • 87475733 - SPACER
  • 12.7mm ID x 26.9mm OD x 10mm L

23 87480321

  • 87480321 - LATCH HOOK

24 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

25 85821270

  • 85821270 - WASHER

26 85819477

  • 85819477 - BALL JOINT
