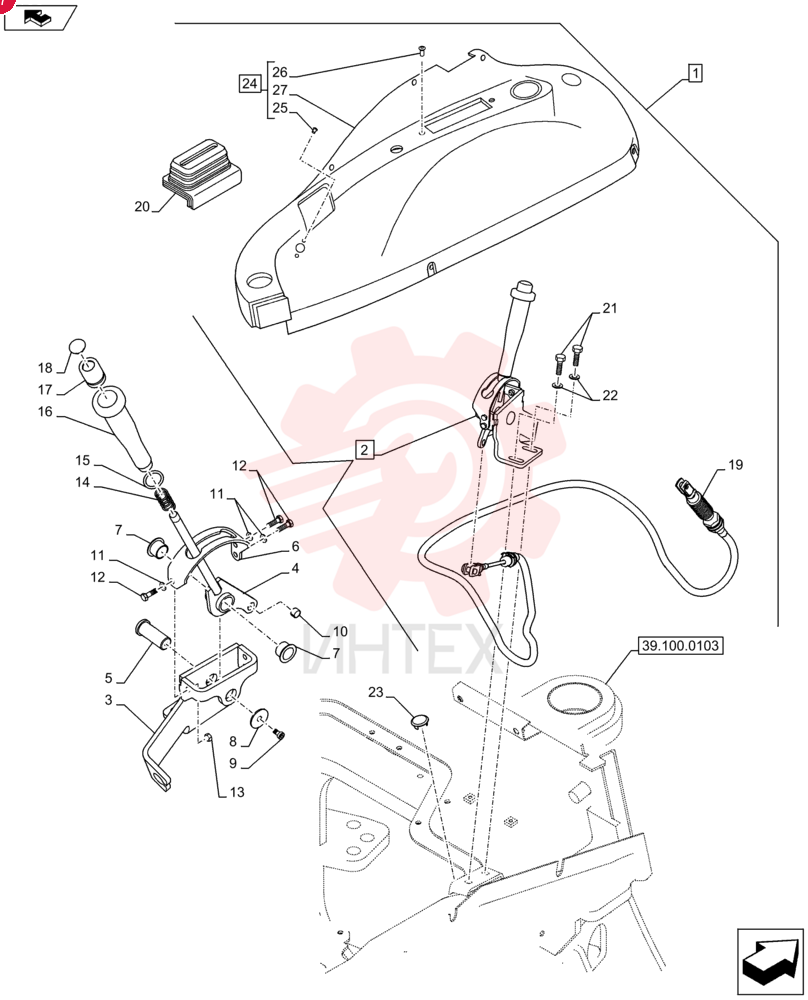

KIT 741382059 (5)
1 741382059
- 741382059 - KIT
2 47744171
- 47744171 - LEVER
3 NSS
- NSS - NOT SOLD SEPARAT
4 47683283
- 47683283 - LEVER
5 47683263
- 47683263 - PIN
- 16mm OD x 40mm L
6 47744170
- 47744170 - BRACKET
7 47693222
- 47693222 - BUSHING
- 16mm ID x 24mm OD x 12mm L
8 86624183
- 86624183 - WASHER
- 6.6mm ID x 25mm OD x 1.6mm Thk
9 63582
- 63582 - HEX SOC SCREW
- M6 x 12mm
- Cl 8.8
10 47693234
- 47693234 - BUSHING
- 8mm ID x 10mm OD x 6mm L
11 11181574
- 11181574 - BELLEVILLE WASHER
- M5 Bolt Size x 11mm OD x 0.9mm Thk
12 86050276
- 86050276 - BOLT
- Hex
- M5 x 16mm
- Cl 8.8
- Full Thd
13 15896414
- 15896414 - NUT
- M5
- Cl 8
14 85821201
- 85821201 - SPRING
15 87324529
- 87324529 - O-RING
- 15.54mm ID
16 87324512
- 87324512 - HANDLE
17 85821200
- 85821200 - PUSH BUTTON
18 87324525
- 87324525 - PLUG
- Red
19 47667683
- 47667683 - CABLE
- 3035mm L
20 85812132
- 85812132 - THREADED BUSHING
21 16043624
- 16043624 - SCREW
- Hex
- M8 x 1.25 x 25mm
- Cl 8.8
- Full Thd
22 11193874
- 11193874 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
23 79111978
- 79111978 - PLUG
- 23mm OD
24 87362098
- 87362098 - SOFT TRIM
25 85802259
- 85802259 - THREADED BUSHING
- M4 x 9.7mm OD x 20mm L
26 85805347
- 85805347 - THREADED BUSHING
- M6 x 9.7mm OD x 20mm L
27 NSS
- NSS - NOT SOLD SEPARAT
