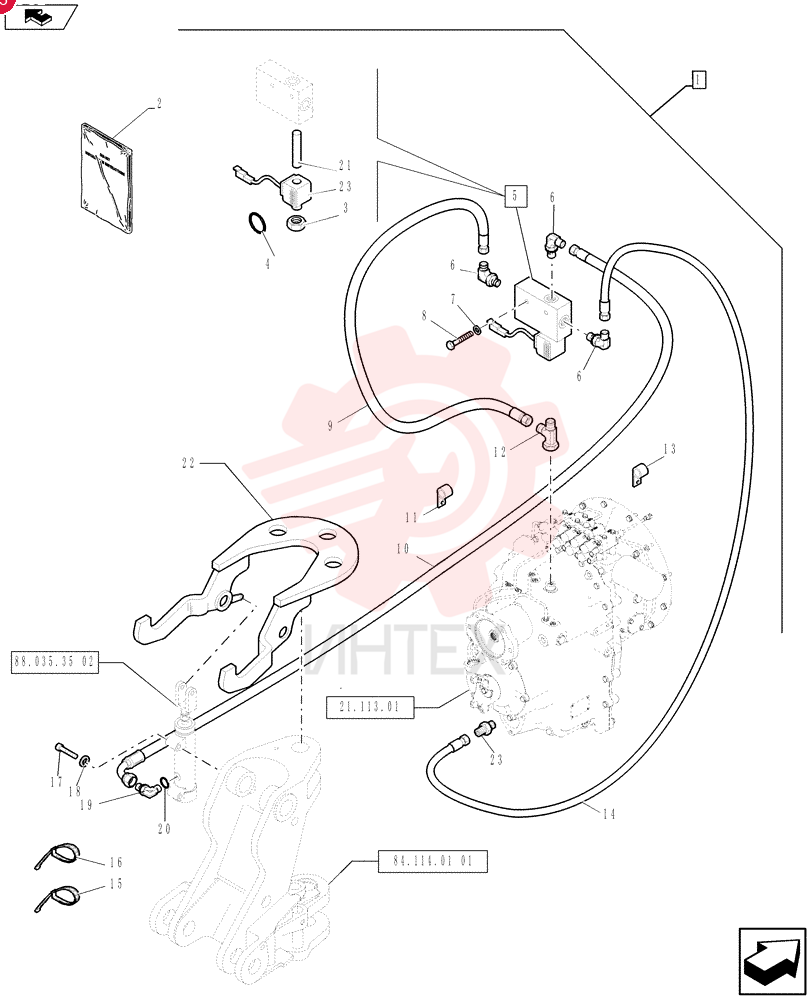

KIT 741373089 (3)
1 741373089
- 741373089 - KIT
2 84139555
- 84139555 - INSTRUCTION
3 9970384
- 9970384 - RING NUT
4 85820848
- 85820848 - SEAL KIT
5 84403093
- 84403093 - LOCK VALVE
6 85802234
- 85802234 - 90 ELBOW
- 7/16"-20 JIC x 9/16"-18 ORB
7 11197779
- 11197779 - BELLEVILLE WASHER
- M6 Bolt Size x 12mm OD x 1.2mm Thk
8 10903221
- 10903221 - SCREW
- Hex
- M6 x 40mm
- Cl 8.8
9 85819068
- 85819068 - FLEXIBLE HOSE
- 6.40 mm ID x 2100 mm L
10 85827681
- 85827681 - FLEXIBLE HOSE
- 6.4mm ID x 1250mm L
11 85802890
- 85802890 - CLAMP
- 28mm
- Coat
- 12.5mm Bolt Hole
- P Type
12 87497065
- 87497065 - HYD CONNECTOR
- 11/16-16 ORFS x 11/16-16 ORFS x 7/16-20 JIC
13 79072960
- 79072960 - CABLE TIE
- 200mm L
14 87488122
- 87488122 - HOSE
- 6.3mm ID x 2100mm L
15 14560187
- 14560187 - COLLAR
- 199mm L
16 85803332
- 85803332 - CABLE TIE
- M4.8 x 180
17 16044221
- 16044221 - SCREW
- Hex
- M8 x 1.25 x 50mm
- Cl 8.8
18 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
19 85824089
- 85824089 - 90 ELBOW
- 7/16-20 JIC x M10 x 1
20 14437585
- 14437585 - O-RING
- 8.00mm ID x 1.50mm
21 85810977
- 85810977 - CARTRIDGE
22 87480317
- 87480317 - LATCH HOOK
23 84402288
- 84402288 - SOLENOID VALVE
- 14V
- DC
