New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

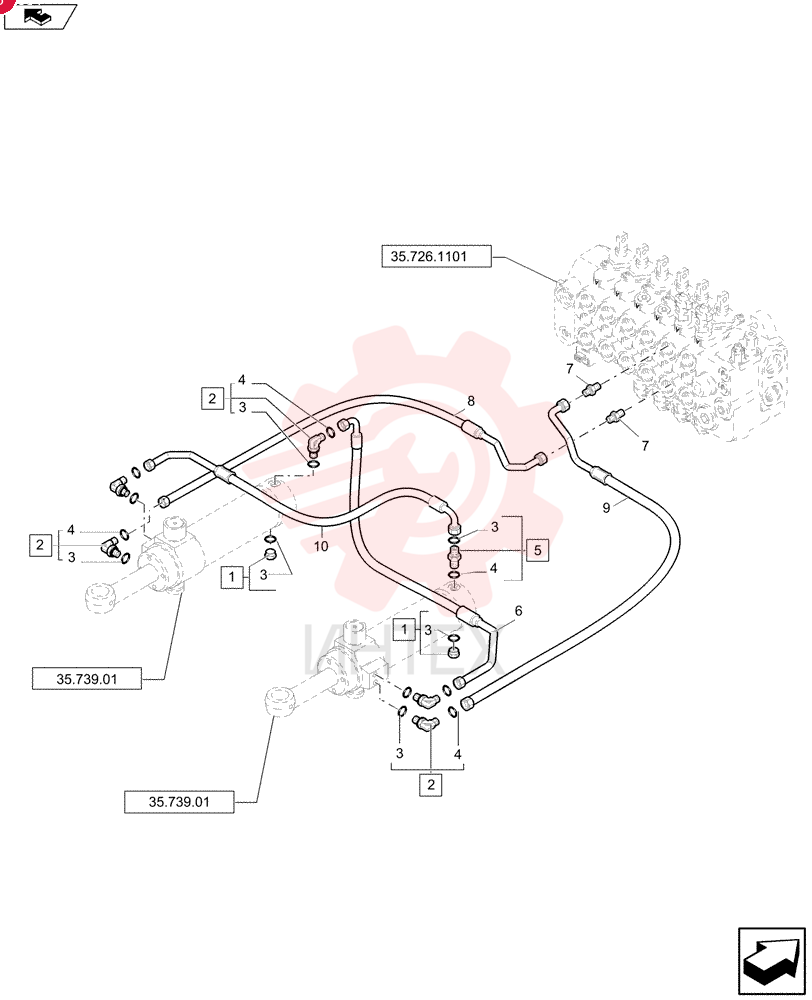

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (1)

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (1)

PLUG,Hex Soc, 3/4" - 16 ORB 86590562 (1)

1 86590562

  • 86590562 - PLUG
  • Hex Soc
  • 3/4" - 16 ORB

2 9992307

  • 9992307 - 90 ELBOW
  • 90 Degree
  • 13/16"-16 x 3/4"-16 Adj
  • ORFS

3 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

4 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

5 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB

6 85819729

  • 85819729 - HYDRAULIC HOSE
  • 9.5mm ID x 385mm L

7 87582906

  • 87582906 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 1-1/16" - 12 ORB

8 87619509

  • 87619509 - FLEXIBLE HOSE
  • 12.7mm ID x 620mm L

9 87619507

  • 87619507 - FLEXIBLE HOSE
  • 12.7mm ID x 650mm L

10 85819727

  • 85819727 - HYDRAULIC HOSE
  • 415mm lg
