(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

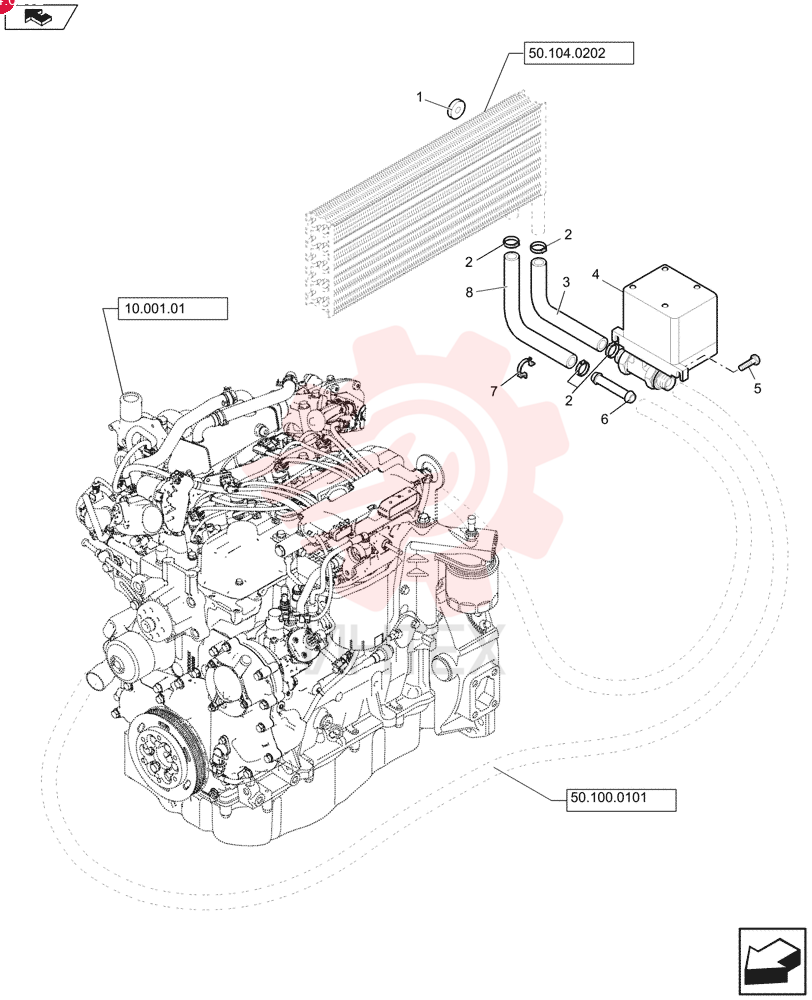

SEAL 87314729

SEAL 87314729

SEAL 87314729

1 87314729

  • 87314729 - SEAL

2 87314726

  • 87314726 - HOSE CLAMP

3 87318747

  • 87318747 - FLEXIBLE HOSE

4 84154849

  • 84154849 - DRAINCOCK/TAP SUPPLY

5 87617261

  • 87617261 - SCREW
  • Hex Skt
  • M5 x 16mm
  • Cl 10.9

6 85804051

  • 85804051 - TUBE

7 87358142

  • 87358142 - COLLAR

8 87318750

  • 87318750 - FLEXIBLE HOSE
