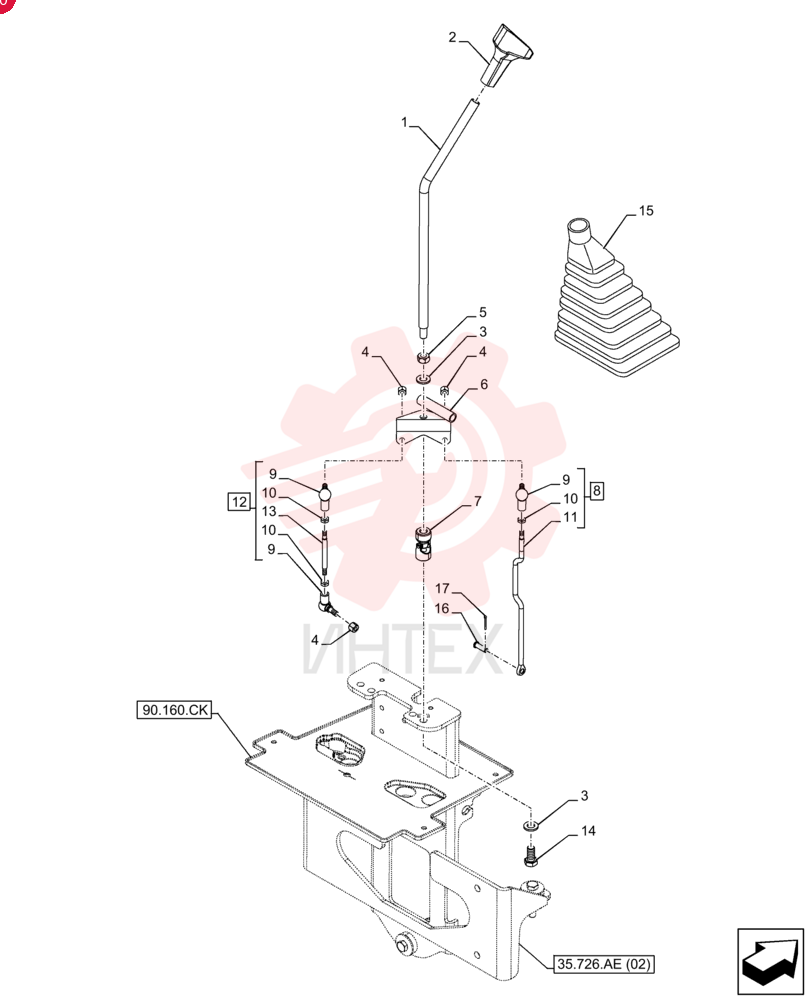

LEVER 85801488 (3)
1 85801488
- 85801488 - LEVER
2 85801502
- 85801502 - KNOB
3 11190779
- 11190779 - BELLEVILLE WASHER
- M12 Bolt Size x 24mm OD x 2.8mm Thk
4 87597953
- 87597953 - NUT
- M8
- 1.25 Pitch
- 10.6mm High
- Cl 8
- ZND
5 16101511
- 16101511 - NUT
- M12 x 1.25
- Cl 8
6 47703969
- 47703969 - TIE-ROD
7 85801518
- 85801518 - UNIVERSAL JOINT
- M12x1.25 Female x2
- 56mm L
8 84161603
- 84161603 - TIE-ROD
- M8 x 273mm L
9 85804375
- 85804375 - BALL JOINT
- M8
10 16102311
- 16102311 - THIN NUT
- Thin
- M8 x 1.25
- Cl 04
11 84160724
- 84160724 - ROD
- 8mm Rod
- 283mm Stroke
12 84172634
- 84172634 - THREADED ROD
- M8 x 84.2mm L
13 84172619
- 84172619 - THREADED ROD
- M8 x 104.1mm L
14 15540321
- 15540321 - SCREW
- Hex
- M12 x 1.25 x 25mm
- Cl 8.8
- Full Thd
15 85802843
- 85802843 - BOOT
16 D149287
- D149287 - PIN
- 7.9mm OD x 26.72mm L
17 432-612
- 432-612 - COTTER PIN
- 3/32" x 3/4"
