New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

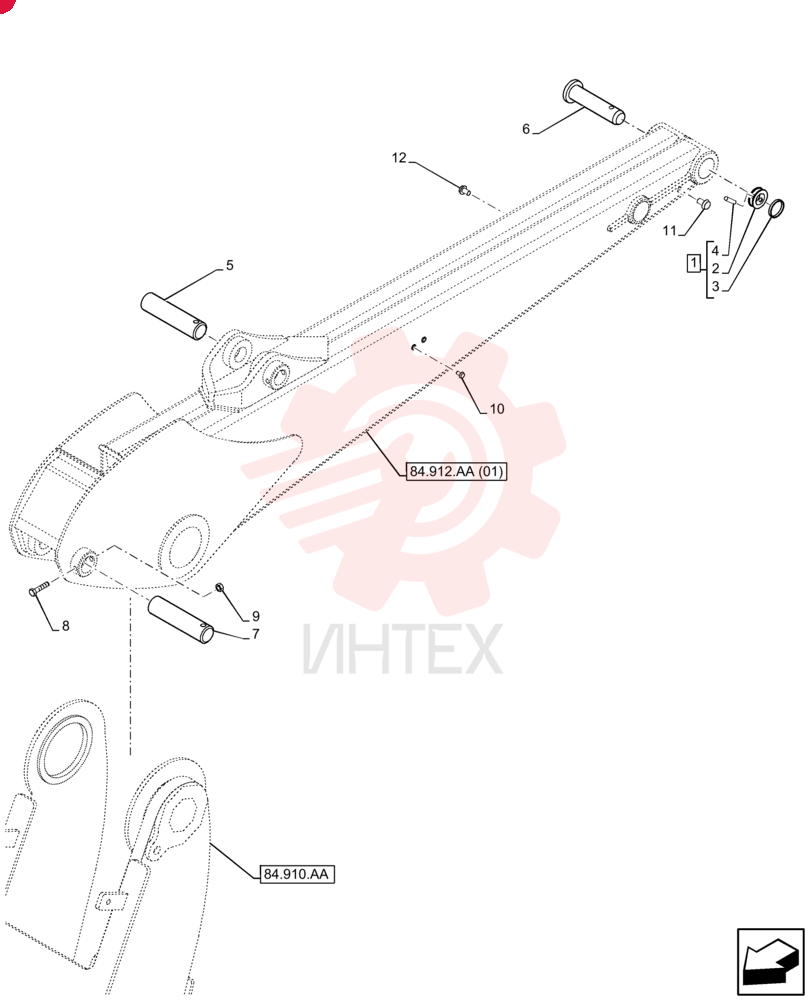

LINCH PIN,10mm OD x 64.5mm L 85802975 (1)

LINCH PIN,10mm OD x 64.5mm L 85802975 (1)

LINCH PIN,10mm OD x 64.5mm L 85802975 (1)

1 85802975

  • 85802975 - LINCH PIN
  • 10mm OD x 64.5mm L

2 85802643

  • 85802643 - SPACER
  • 46mm ID x 65mm OD x 21mm L

3 85802974

  • 85802974 - RING
  • 64mm ID x 69mm OD x 10mm Thk

4 85802976

  • 85802976 - PIN
  • 10mm OD x 64.5mm L

5 87577359

  • 87577359 - PIN
  • 44.92mm OD x 208mm L

6 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

7 84360306

  • 84360306 - PIN
  • 50mm OD x 225mm L

8 15542921

  • 15542921 - BOLT
  • Hex
  • M12 x 1.25 x 95mm
  • Cl 8.8

9 16105011

  • 16105011 - NUT
  • Hex
  • M12 x 1.25
  • Cl 8

10 85804447

  • 85804447 - PLUG
  • 8mm OD

11 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

12 85801492

  • 85801492 - THREADED INSERT
