New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

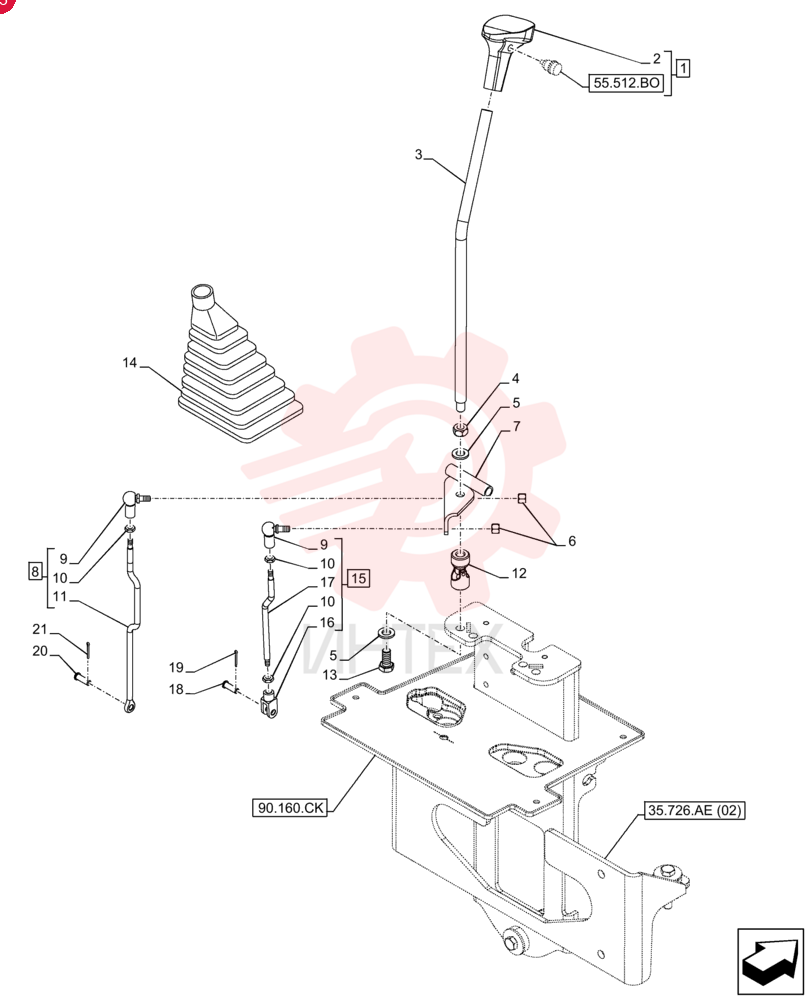

KNOB 85802682

KNOB 85802682

KNOB 85802682

1 85802682

  • 85802682 - KNOB

2 NSS

  • NSS - NOT SOLD SEPARAT

3 85801488

  • 85801488 - LEVER

4 16101511

  • 16101511 - NUT
  • M12 x 1.25
  • Cl 8

5 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

6 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

7 47703971

  • 47703971 - TIE-ROD

8 84161603

  • 84161603 - TIE-ROD
  • M8 x 273mm L

9 85804375

  • 85804375 - BALL JOINT
  • M8

10 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

11 84160724

  • 84160724 - ROD
  • 8mm Rod
  • 283mm Stroke

12 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

13 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

14 85802843

  • 85802843 - BOOT

15 84172635

  • 84172635 - THREADED ROD
  • M8 x 206.2mm L

16 87602941

  • 87602941 - ADJUSTABLE CLEVIS
  • M8 x 16mm
  • Short

17 84172620

  • 84172620 - THREADED ROD
  • M8 x 193.5mm L

18 374834

  • 374834 - CLEVIS PIN
  • M8 x 22

19 87016662

  • 87016662 - HAIR PIN COTTER
  • M2 x 18mm L

20 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

21 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"
