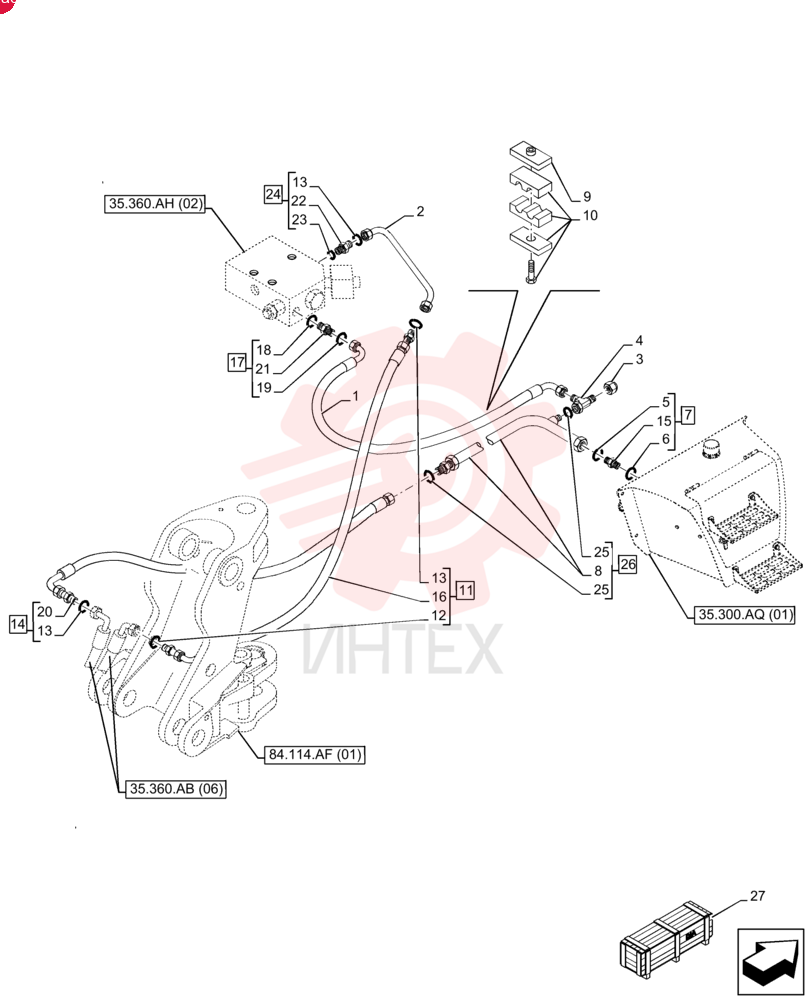

HYDRAULIC HOSE,6.35mm ID x 2050mm L
1 85817633
- 85817633 - HYDRAULIC HOSE
- 6.35mm ID x 2050mm L
2 84416862
- 84416862 - TUBE
3 83987627
- 83987627 - CAP
- 1-14UN-2A
4 85807876
- 85807876 - TEE
- 1-14 ORS x 11/16-16 ORS x 1-14 SAE
5 167268
- 167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
6 9824051
- 9824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
7 85802801
- 85802801 - HYD CONNECTOR
- 1-11/16-12 ORFS x 1-5/16-12 ORB
8 NSS
- NSS - NOT SOLD SEPARAT
9 87390531
- 87390531 - PLATE
10 87390530
- 87390530 - CLAMP
11 85817634
- 85817634 - HYDRAULIC HOSE
- 19.05mm ID x 1750mm L
12 9991976
- 9991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
13 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
14 85817635
- 85817635 - HYDRAULIC HOSE
- 19mm ID x 1400mm L
15 NSS
- NSS - NOT SOLD SEPARAT
16 NSS
- NSS - NOT SOLD SEPARAT
17 9993143
- 9993143 - HYD CONNECTOR
- 11/16" - 16 ORFS x 9/16" - 18 ORB
18 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
19 9993141
- 9993141 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
20 NSS
- NSS - NOT SOLD SEPARAT
21 NSS
- NSS - NOT SOLD SEPARAT
22 NSS
- NSS - NOT SOLD SEPARAT
23 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
24 85803486
- 85803486 - FITTING
- 1 7/16"-12 ORFS x 1 1/16"-12 ORB
25 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
26 47553114
- 47553114 - HYD TUBE
27 718724149
- 718724149 - CONSTRUCTION DIA
