(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

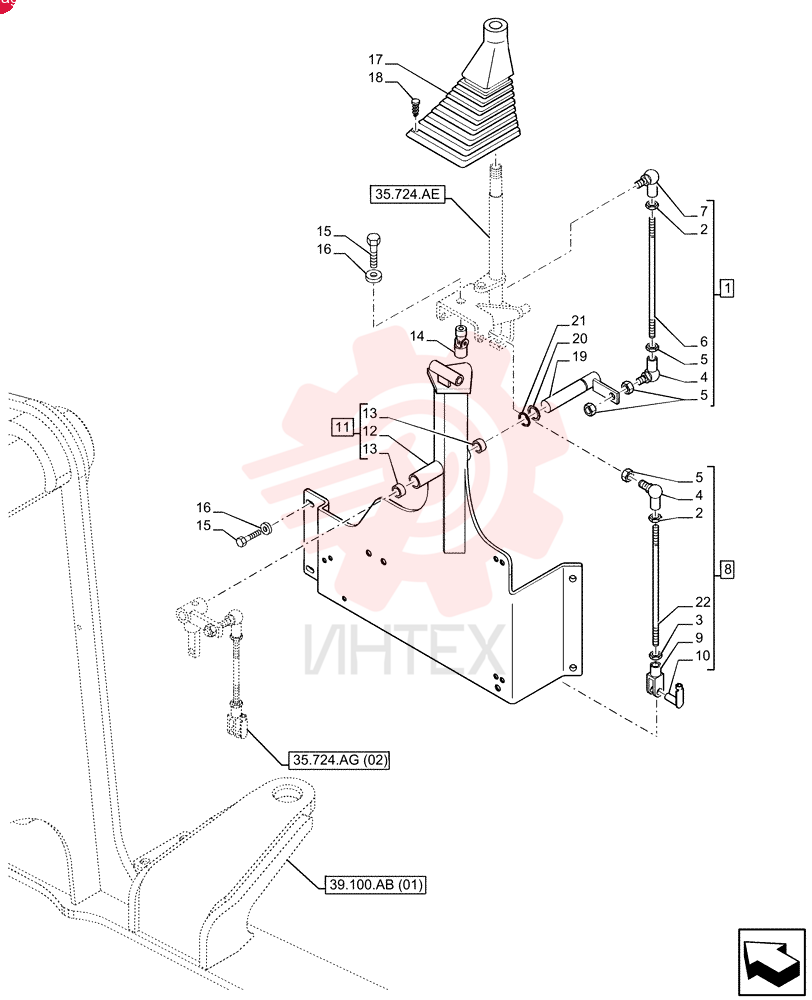

TIE-ROD,M8 x 213.5mm L

TIE-ROD,M8 x 213.5mm L

TIE-ROD,M8 x 213.5mm L

1 85803477

  • 85803477 - TIE-ROD
  • M8 x 213.5mm L

2 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

3 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

4 85804375

  • 85804375 - BALL JOINT
  • M8

5 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

6 85803478

  • 85803478 - TIE-ROD
  • M8 x 180mm L

7 85804376

  • 85804376 - BALL JOINT
  • M8

8 85805498

  • 85805498 - TIE-ROD

9 11991971

  • 11991971 - CLEVIS
  • M8

10 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

11 47709602

  • 47709602 - SUPPORT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

14 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

15 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

16 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

17 85802842

  • 85802842 - BOOT

18 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

19 85824463

  • 85824463 - LEVER

20 14496901

  • 14496901 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

21 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

22 85806205

  • 85806205 -
