(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

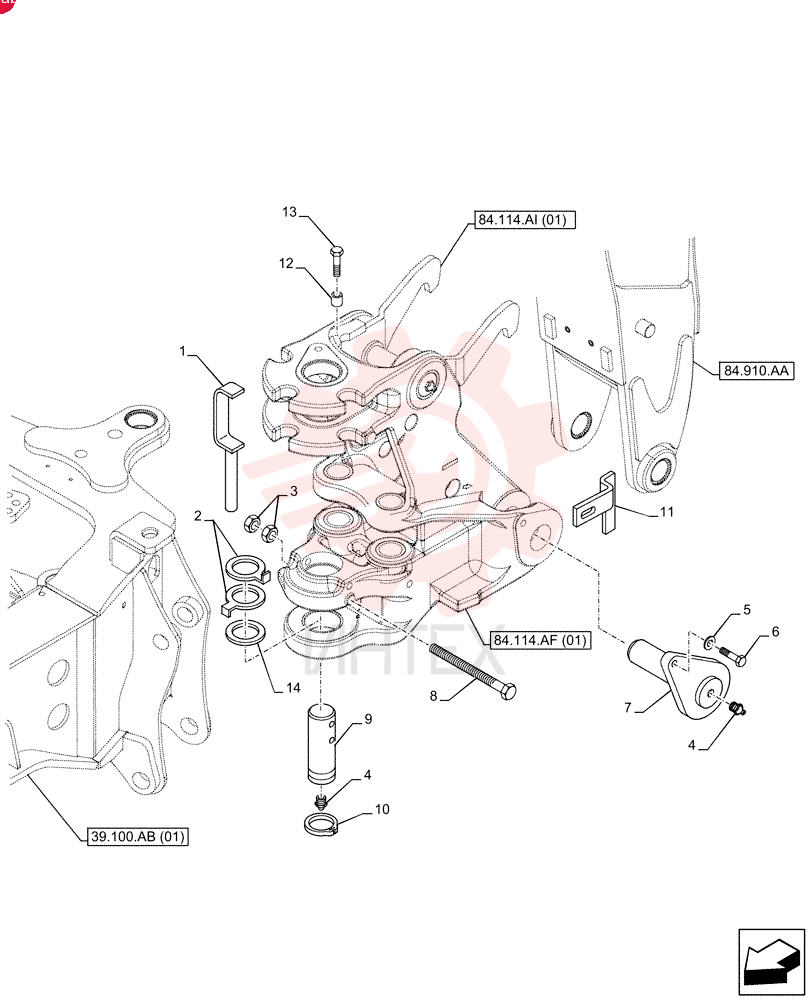

PIN,35mm OD x 120mm L

PIN,35mm OD x 120mm L

PIN,35mm OD x 120mm L

1 87610834

  • 87610834 - PIN
  • 35mm OD x 120mm L

2 85801191

  • 85801191 - SPACER
  • 71mm ID x 8mm Thk

3 10717421

  • 10717421 - THIN NUT
  • Thin
  • M14 x 2
  • Cl 05

4 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

5 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

6 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

7 85802872

  • 85802872 - PIN
  • 55mm OD x 122mm L

8 15201934

  • 15201934 - BOLT
  • Hex
  • M14 x 2 x 170mm
  • Cl 10.9

9 85801079

  • 85801079 - PIN
  • 70mm OD x 163mm L

10 85803198

  • 85803198 - RING
  • M7 x 2.5mm Thk
  • Ext

11 85816774

  • 85816774 - PLATE

12 85816775

  • 85816775 - PLATE

13 87475733

  • 87475733 - SPACER
  • 12.7mm ID x 26.9mm OD x 10mm L

14 16043921

  • 16043921 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

15 8274447

  • 8274447 - SHIM
  • 71mm ID x 130mm OD x 1mm Thk
