(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

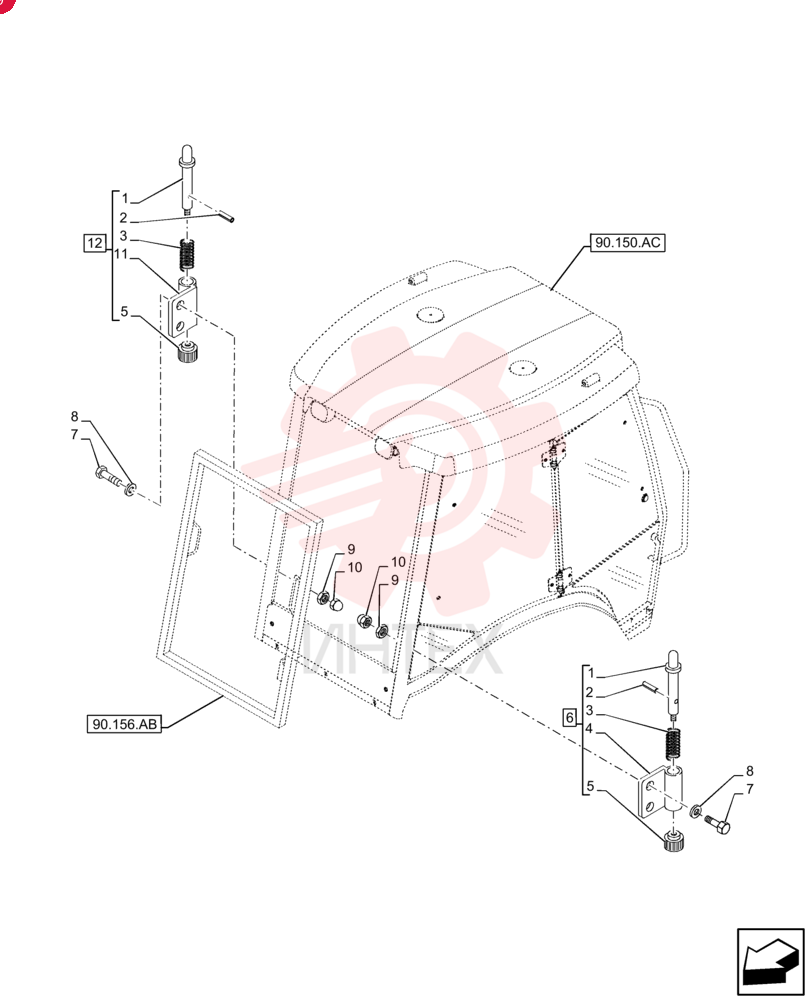

PIN,15mm OD x 68.5mm L

PIN,15mm OD x 68.5mm L

PIN,15mm OD x 68.5mm L

1 85801834

  • 85801834 - PIN
  • 15mm OD x 68.5mm L

2 14161771

  • 14161771 - LOCK PIN
  • M3 x 16
  • Slotted

3 85801832

  • 85801832 - SPRING
  • 13.5mm OD x 30mm L

4 85801831

  • 85801831 - BLOCK

5 85801833

  • 85801833 - KNOB

6 85802345

  • 85802345 - HINGE

7 85827836

  • 85827836 - HEX SOC SCREW
  • M8 x 1.25 x 25mm
  • Cl 8.8

8 11198074

  • 11198074 - BELLEVILLE WASHER
  • M8 Bolt Size x 15mm OD x 1.8mm Thk

9 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

10 5132136

  • 5132136 - CAP COVER
  • M8

11 85801830

  • 85801830 - BLOCK

12 85802344

  • 85802344 - HINGE
