New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

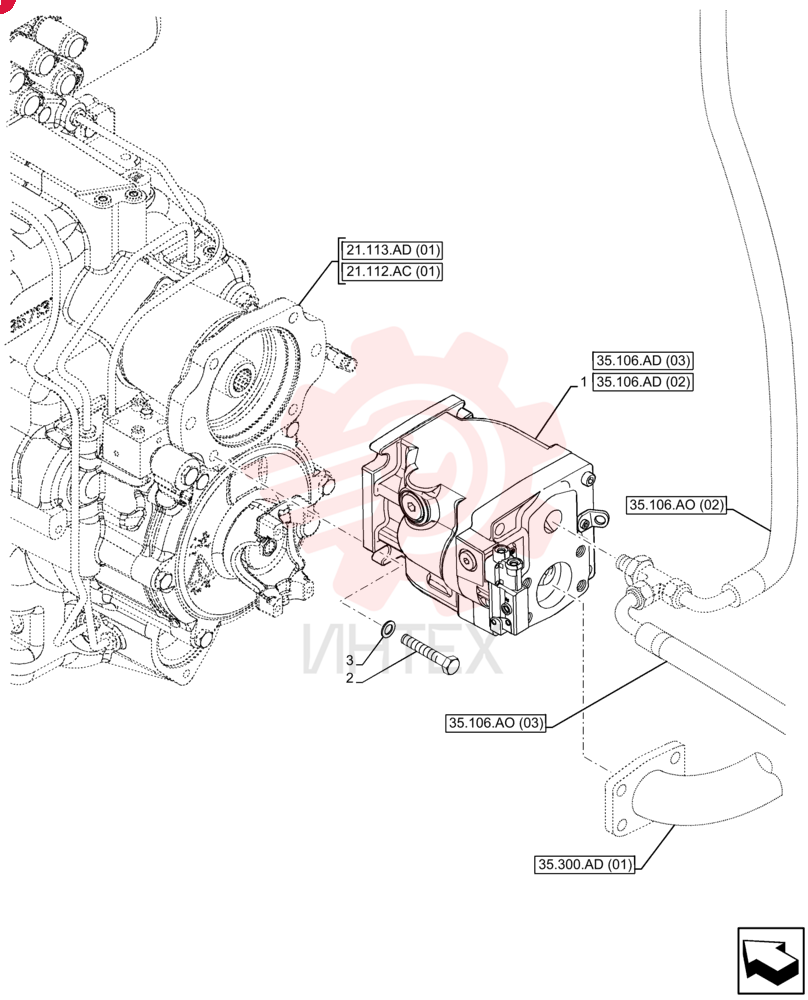

HYDRAULIC PUMP,75 CC 87735166 (1)

HYDRAULIC PUMP,75 CC 87735166 (1)

HYDRAULIC PUMP,75 CC 87735166 (1)

1 87735166

  • 87735166 - HYDRAULIC PUMP
  • 75 CC

2 15540534

  • 15540534 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

3 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk
