(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

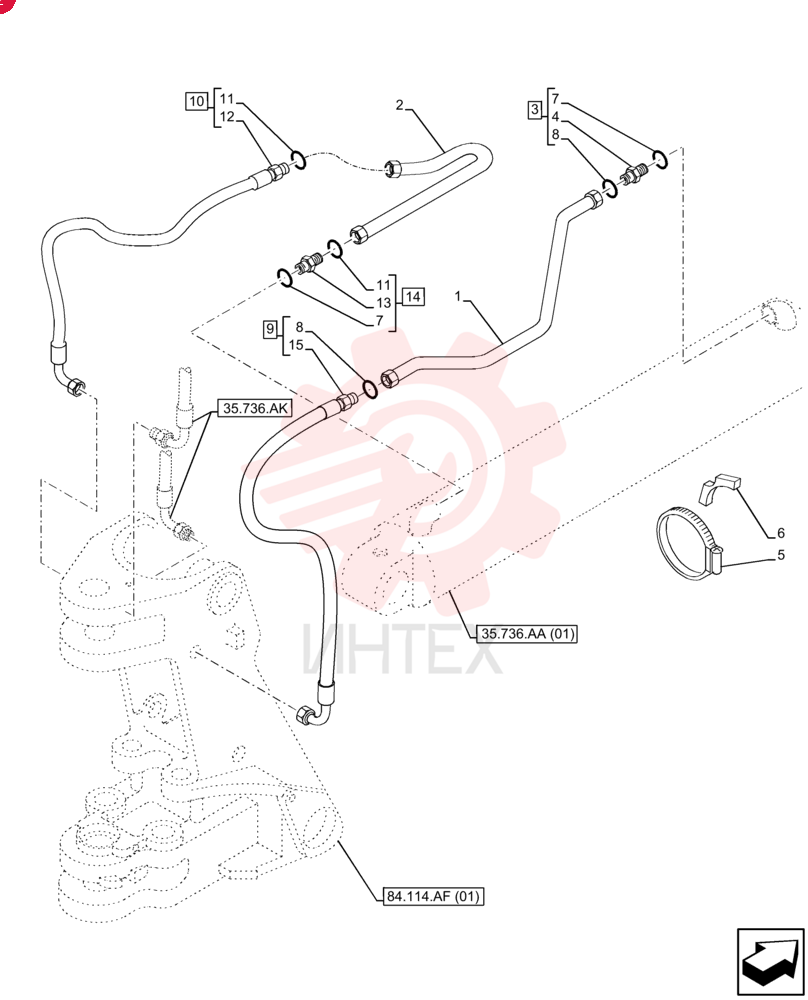

PIPE 87624533

PIPE 87624533

PIPE 87624533

1 87624533

  • 87624533 - PIPE

2 85816813

  • 85816813 - HYD TUBE

3 83962538

  • 83962538 - FITTING
  • 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4 NSS

  • NSS - NOT SOLD SEPARAT

5 85802744

  • 85802744 - HOSE CLAMP
  • 160mm - 180mm

6 87303912

  • 87303912 - BLOCK

7 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

8 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

9 87621914

  • 87621914 - FLEXIBLE HOSE
  • 15.9mm ID x 650mm L

10 87619512

  • 87619512 - FLEXIBLE HOSE
  • 12.7mm ID x 650mm L

11 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

15 NSS

  • NSS - NOT SOLD SEPARAT
