(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

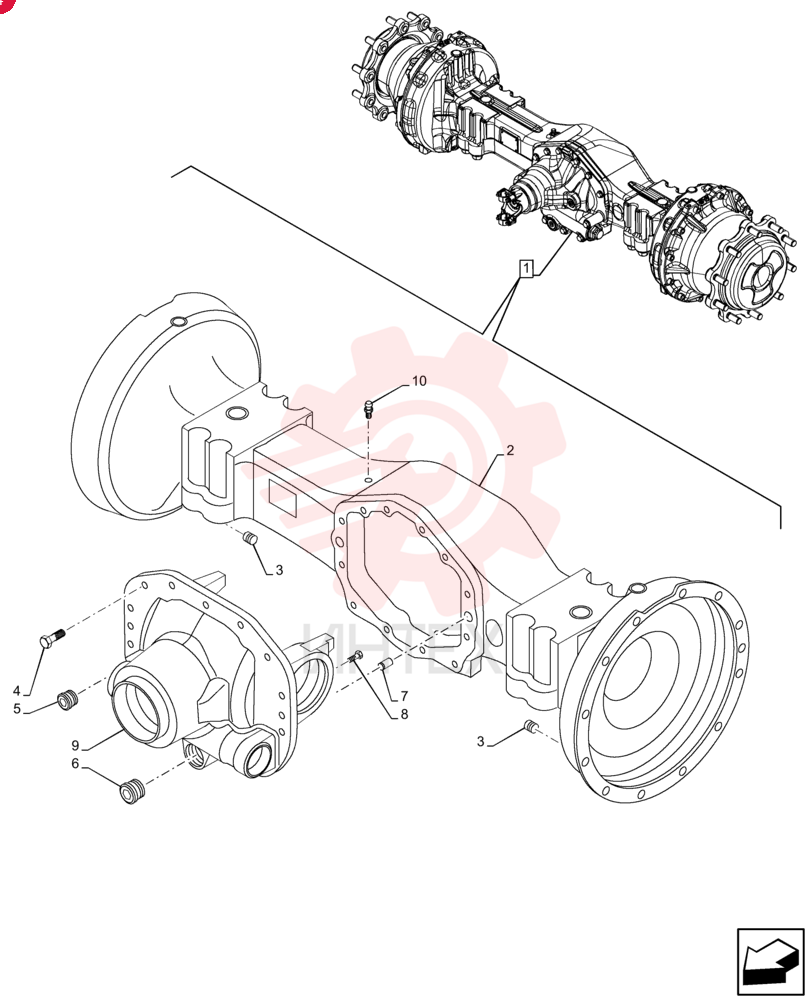

REAR AXLE 87692508 (1)

REAR AXLE 87692508 (1)

REAR AXLE 87692508 (1)

1 87692508

  • 87692508 - REAR AXLE

2 87708487

  • 87708487 - AXLE HOUSING

3 A156873

  • A156873 - PLUG
  • DRAIN
  • M22 x 1.5

4 S301064

  • S301064 - BOLT
  • M12

5 434746A1

  • 434746A1 - PLUG
  • M24 x 1.5

6 100557A1

  • 100557A1 - PLUG
  • DRAIN
  • M30 x 2

7 1966138C1

  • 1966138C1 - DOWEL

8 864-6025

  • 864-6025 - HEX SOC SCREW
  • M6 x 25mm
  • Cl 8.8

9 84202050

  • 84202050 - SUPPORT

10 1966149C2

  • 1966149C2 - BREATHER
