(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

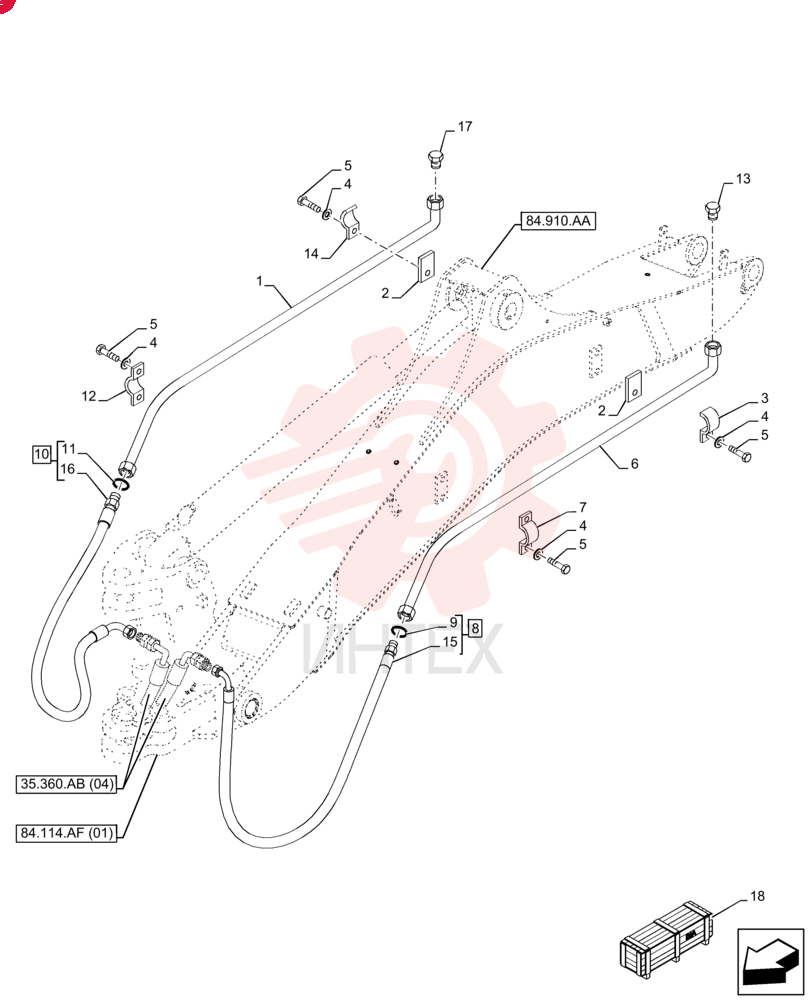

PRESSURE PIPE 87622842

PRESSURE PIPE 87622842

PRESSURE PIPE 87622842

1 87622842

  • 87622842 - PRESSURE PIPE

2 87630711

  • 87630711 - PLATE

3 87624517

  • 87624517 - PIPE CLAMP
  • 26mm ID

4 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

5 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

6 87616236

  • 87616236 - PRESSURE PIPE

7 87310952

  • 87310952 - CLAMP
  • 31mm ID

8 85819619

  • 85819619 - HYDRAULIC HOSE
  • 19.05mm ID x 950mm L

9 9824050

  • 9824050 - O-RING
  • 0.07" Thk x 0.926" ID
  • -21
  • Cl 6
  • 90 Duro

10 85819618

  • 85819618 - HYDRAULIC HOSE
  • 25.4mm ID x 950mm L

11 9824051

  • 9824051 - O-RING
  • 0.07" Thk x 1.176" ID
  • -25
  • Cl 6
  • 90 Duro

12 87310951

  • 87310951 - CLAMP
  • 26mm ID

13 85801397

  • 85801397 - PLUG
  • 1-7/16 Male

14 87629471

  • 87629471 - PIPE CLAMP
  • 32mm ID

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 85801452

  • 85801452 - PLUG

18 718724139

  • 718724139 - CONSTRUCTION DIA

19 718724149

  • 718724149 - CONSTRUCTION DIA
