(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

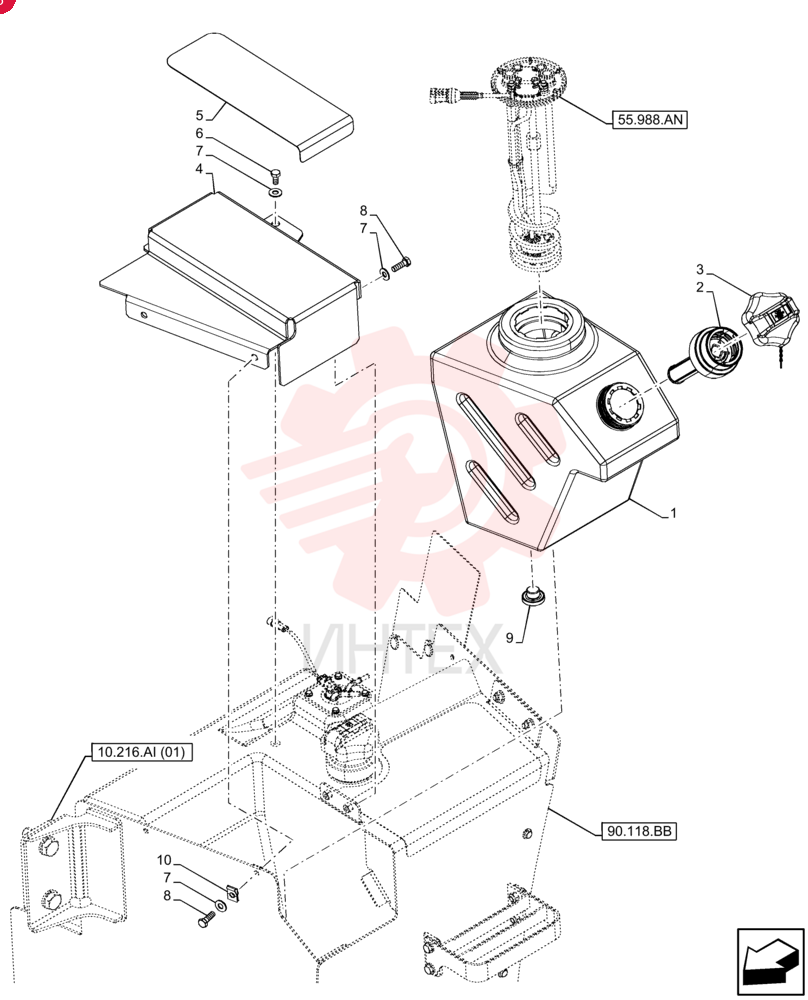

TANK,21.5 Liters / 4.09 US Gallons

TANK,21.5 Liters / 4.09 US Gallons

TANK,21.5 Liters / 4.09 US Gallons

1 47473716

  • 47473716 - TANK
  • 21.5 Liters / 4.09 US Gallons

2 47569560

  • 47569560 - NECK FILLER

3 47569556

  • 47569556 - FILLER CAP
  • Male
  • Lockable

4 47473645

  • 47473645 - WRAPPER

5 47474124

  • 47474124 - STRIP

6 16043221

  • 16043221 - BOLT
  • Hex
  • M8 x 16mm
  • Cl 8.8
  • Full Thd

7 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

8 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8

9 84485414

  • 84485414 - DRAIN PLUG
  • M24 x 1.5

10 86625074

  • 86625074 - SPRING NUT
  • Multi-Thd
  • M8 x 1.25
