(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

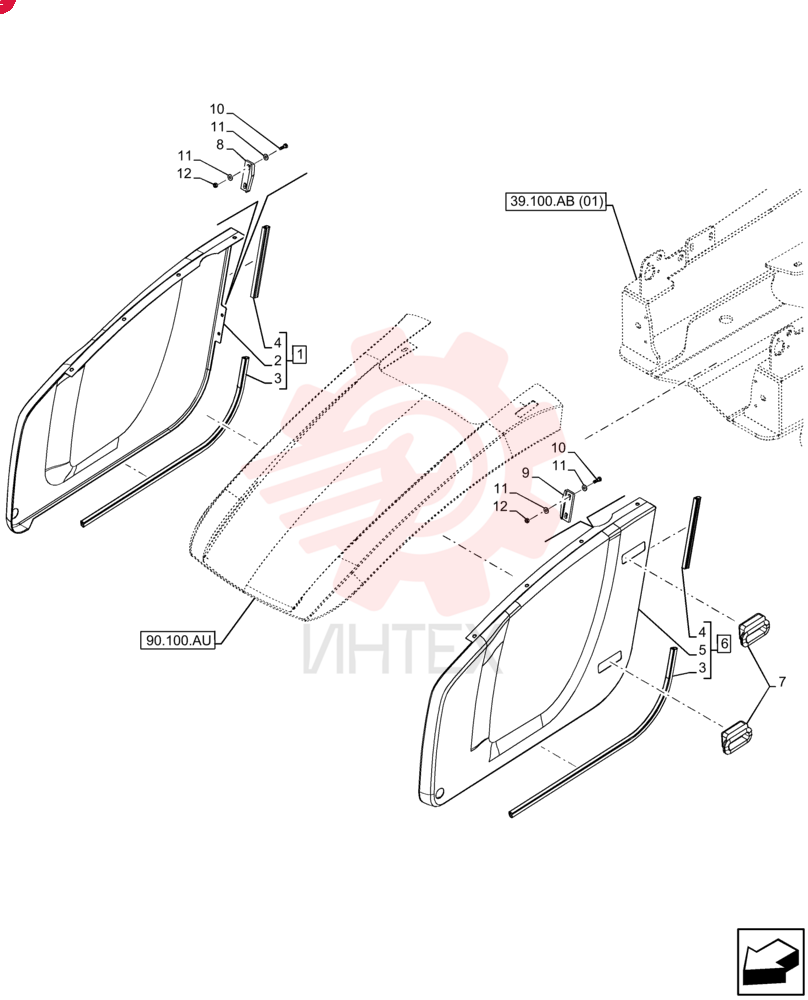

PANEL 84515139

PANEL 84515139

PANEL 84515139

1 84515139

  • 84515139 - PANEL

2 NSS

  • NSS - NOT SOLD SEPARAT

3 47390240

  • 47390240 - RUBBER SEAL
  • 920mm L

4 47390241

  • 47390241 - RUBBER SEAL
  • 262mm L

5 NSS

  • NSS - NOT SOLD SEPARAT

6 84515137

  • 84515137 - PANEL

7 83962571

  • 83962571 - HANDLE

8 D143714

  • D143714 - SUPPORT

9 D143715

  • D143715 - SUPPORT

10 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

11 12625201

  • 12625201 - WASHER
  • 8.15mm ID x 20mm OD x 1mm Thk

12 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND
