New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

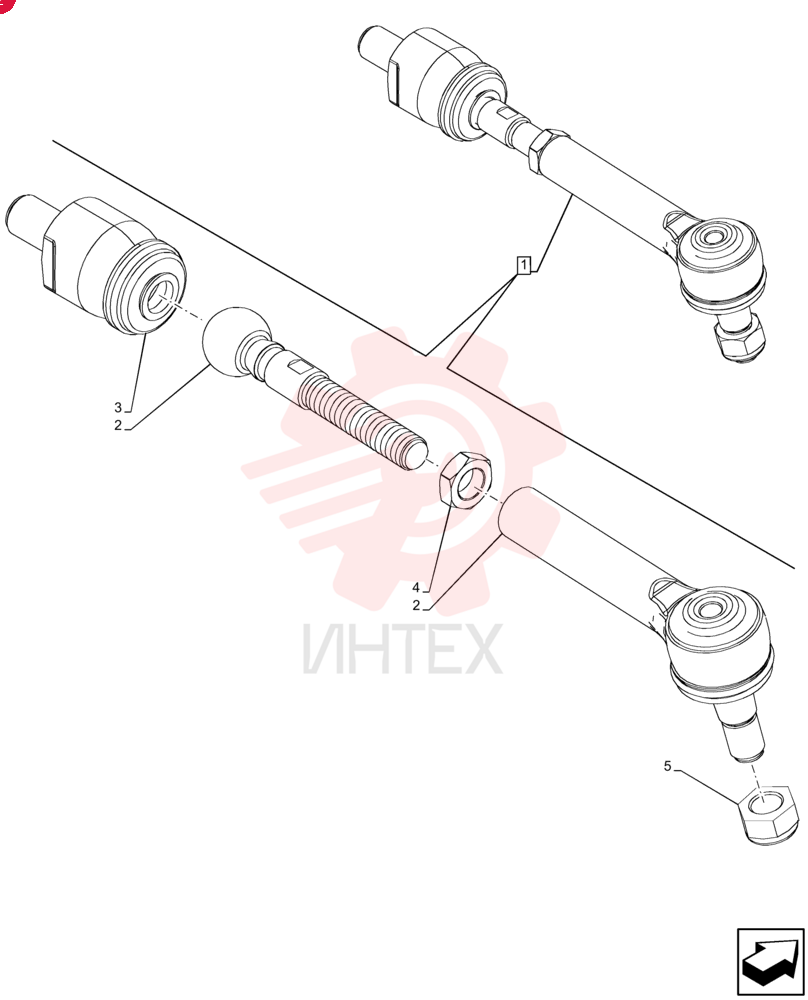

TIE-ROD,397mm L 84264410 (4)

TIE-ROD,397mm L 84264410 (4)

TIE-ROD,397mm L 84264410 (4)

1 84264410

  • 84264410 - TIE-ROD
  • 397mm L

2 84276565

  • 84276565 - BALL JOINT
  • 36mm OD x 282mm L

3 87489984

  • 87489984 - BALL JOINT
  • 444.1mm L

4 87489982

  • 87489982 - NUT
  • M24 x 1.5
  • Cl. 8

5 87489983

  • 87489983 - NUT
  • M24 x 1.5
  • Cl. 10

(B110C) - BACKHOE LOADER - TIER 4B (2/15-) — другие схемы
