New Holland Construction
/

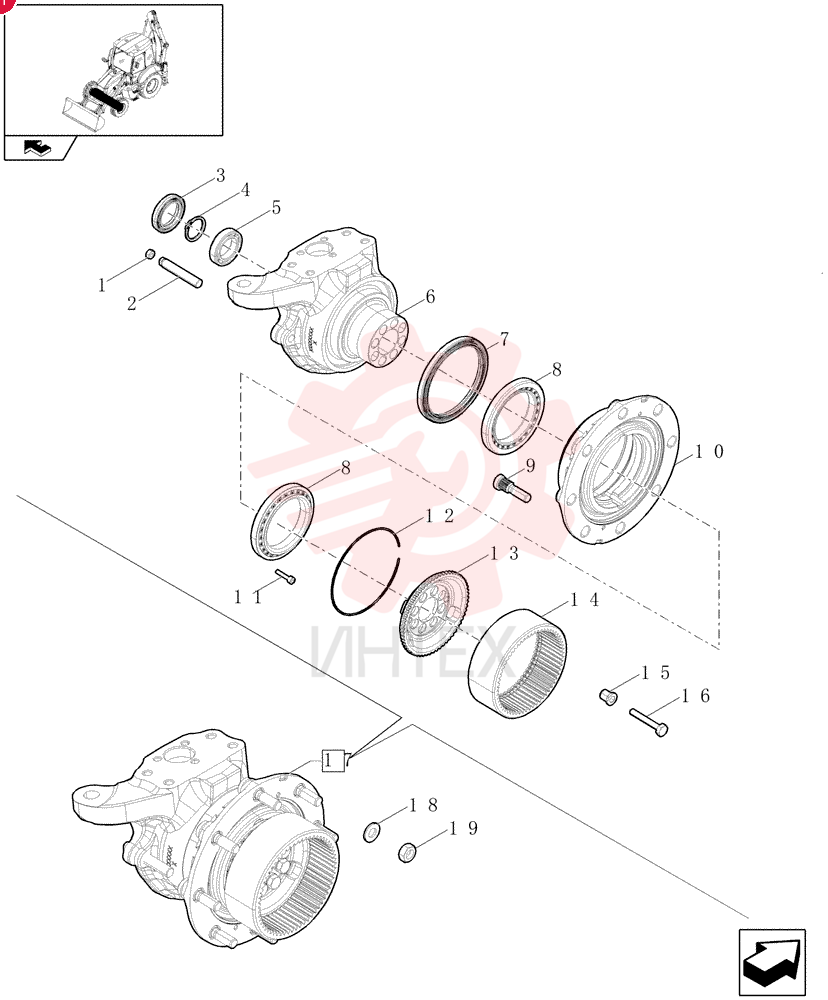

(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/
THIN NUT,Thin, M18 x 2.5, Cl 05

THIN NUT,Thin, M18 x 2.5, Cl 05

THIN NUT,Thin, M18 x 2.5, Cl 05

1 10717624

  • 10717624 - THIN NUT
  • Thin
  • M18 x 2.5
  • Cl 05

2 87751873

  • 87751873 - SCREW
  • M18 x 105mm
  • Cl 10.9

3 84264324

  • 84264324 - SEAL
  • 53.2mm ID x 78mm OD x 14mm Thk

4 84270868

  • 84270868 - CIRCLIP
  • 75 PHC

5 84262394

  • 84262394 - BALL BEARING
  • 45mm ID x 75mm OD x 16mm W

6 84259616

  • 84259616 - STEERING KNUCKLE

7 84259618

  • 84259618 - STEERING KNUCKLE

8 87349641

  • 87349641 - OIL SEAL
  • 150mm ID x 180mm OD x 14.5/16mm Thk

9 5133737

  • 5133737 - ROLLER BEARING
  • 109.5mm ID x 158.75mm OD x 23mm W

10 84264323

  • 84264323 - STUD
  • M18 x 1.5 x 71.2mm

11 84297567

  • 84297567 - HUB

12 13028524

  • 13028524 - SCREW
  • M8 x 20mm

13 5165162

  • 5165162 - SNAP RING
  • M50
  • Int

14 84259703

  • 84259703 - GEAR
  • 60T

15 87748929

  • 87748929 - RING GEAR
  • 60T

16 84252637

  • 84252637 - SLEEVE
  • 12.55mm ID x 20.080mm OD x 25mm Thk

17 84273747

  • 84273747 - LOCK BOLT
  • Hex
  • M12 x 1.75 x 45mm
  • LH Thd

18 84263613

  • 84263613 - STEERING KNUCKLE
  • LH

19 84263614

  • 84263614 - STEERING KNUCKLE
  • RH

20 10721021

  • 10721021 - NUT
  • M18 x 1.5
  • Cl 10

21 496-81000

  • 496-81000 - WASHER
  • 25/32" x 1 3/8" x .134"
  • HDN
