New Holland Construction
/

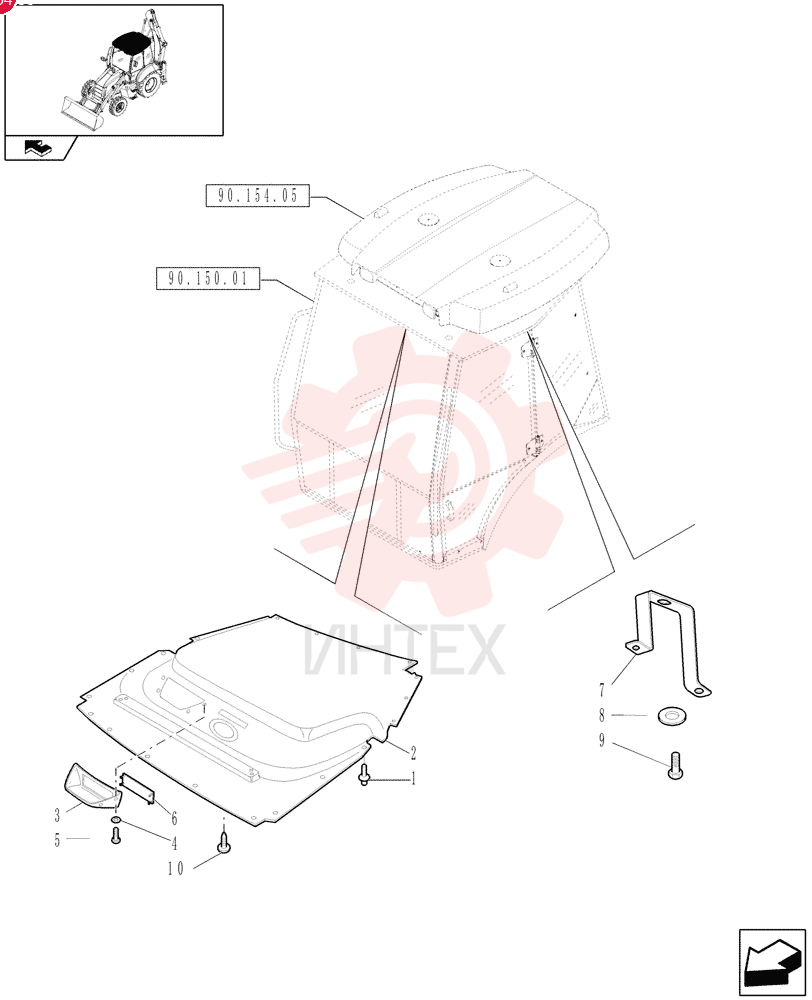

(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/
RIVET,7.3mm OD x 12mm L

RIVET,7.3mm OD x 12mm L

RIVET,7.3mm OD x 12mm L

1 5162852

  • 5162852 - RIVET
  • 7.3mm OD x 12mm L

2 87732838

  • 87732838 - ROOF LINING

3 47736734

  • 47736734 - ROOF

4 84130017

  • 84130017 - BOX

5 895-11004

  • 895-11004 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

6 840-1440

  • 840-1440 - SCREW
  • Pan
  • M4 x 40mm
  • Cl 4.8

7 1535219C1

  • 1535219C1 - COVER

8 87656784

  • 87656784 - BRACKET

9 895-15006

  • 895-15006 - WASHER
  • 6.6mm ID x 25mm OD x 1.6mm Thk

10 10902421

  • 10902421 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8

11 85805777

  • 85805777 - PLUG
  • Black
