(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

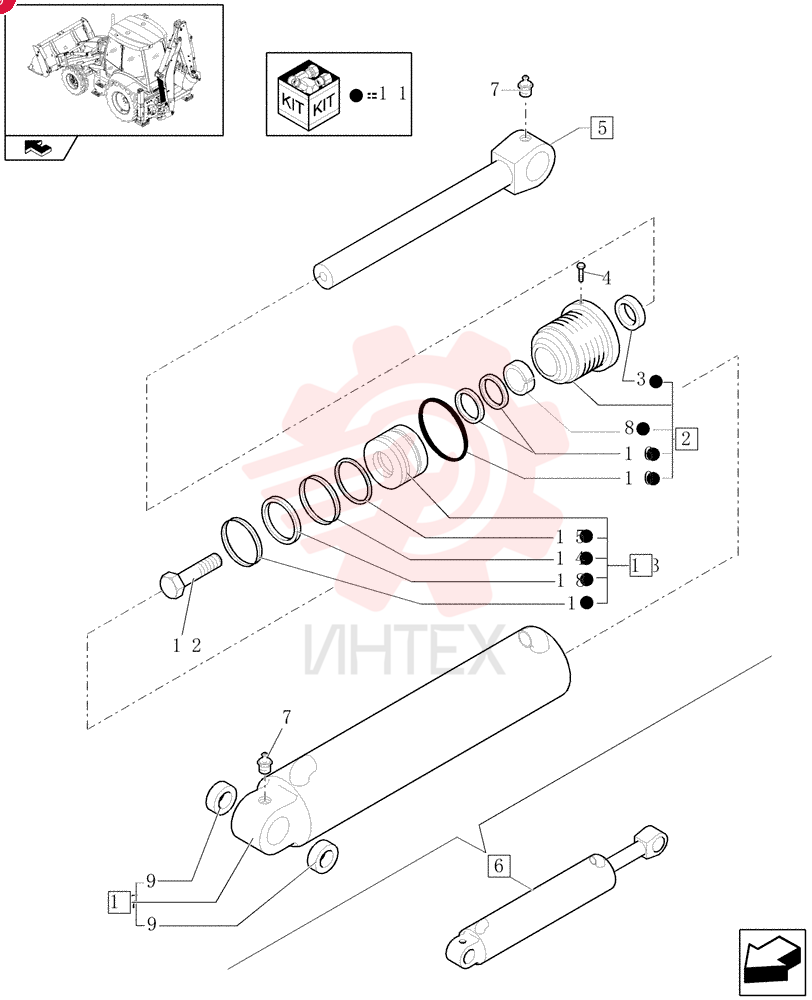

RING,127mm OD, Ext

RING,127mm OD, Ext

RING,127mm OD, Ext

1 G102090

  • G102090 - RING
  • 127mm OD
  • Ext

2 84153797

  • 84153797 - GLAND

3 D95146

  • D95146 - WIPER SEAL
  • 63.4mm ID x 76.22mm OD x 7.92mm Thk

4 G109395

  • G109395 - SELF-TAP SCREW
  • Hex
  • #8 - 32 x 3/8"

5 87487859

  • 87487859 - ROD

6 87487863

  • 87487863 - CYLINDER
  • Double Acting
  • 63.5mm Rod
  • 907mm Stroke

7 87487863R

  • 87487863R - REMAN-HYD CYLINDER

8 87487863C

  • 87487863C - CORE-HYD CYLINDER

9 219-1

  • 219-1 - LUBE NIPPLE
  • 1/8" - 27 NPTF

10 G109908

  • G109908 - BUSHING
  • 63.5mm ID x 66.57mm OD x 25.15mm L

11 D149079

  • D149079 - BUSHING
  • 50.19mm ID x 60mm OD x 34mm L

12 87615485

  • 87615485 - SEAL
  • 118.72mm ID x 125.88mm OD x 4.85mm Thk

13 84154166

  • 84154166 - SEAL KIT
  • 63.5mm Rod x 127mm Bore

14 86982444

  • 86982444 - SPECIAL BOLT
  • Hex
  • 12
  • 1 1/2 x 3.50"

15 87598246

  • 87598246 - PISTON

16 G102092

  • G102092 - RING
  • Square
  • 5.28mm Thk x 113.92mm ID

17 G102091

  • G102091 - SEAL
  • 128.52mm OD x 6.96mm Thk

18 1542879C1

  • 1542879C1 - SEAL KIT
  • 63.5mm Rod x 88.9mm Bore

19 87487667

  • 87487667 - TUBE

20 117359A1

  • 117359A1 - RING
  • Locking
  • 120.54mm ID x 131mm OD x 6.33mm Thk
