New Holland Construction
/
(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

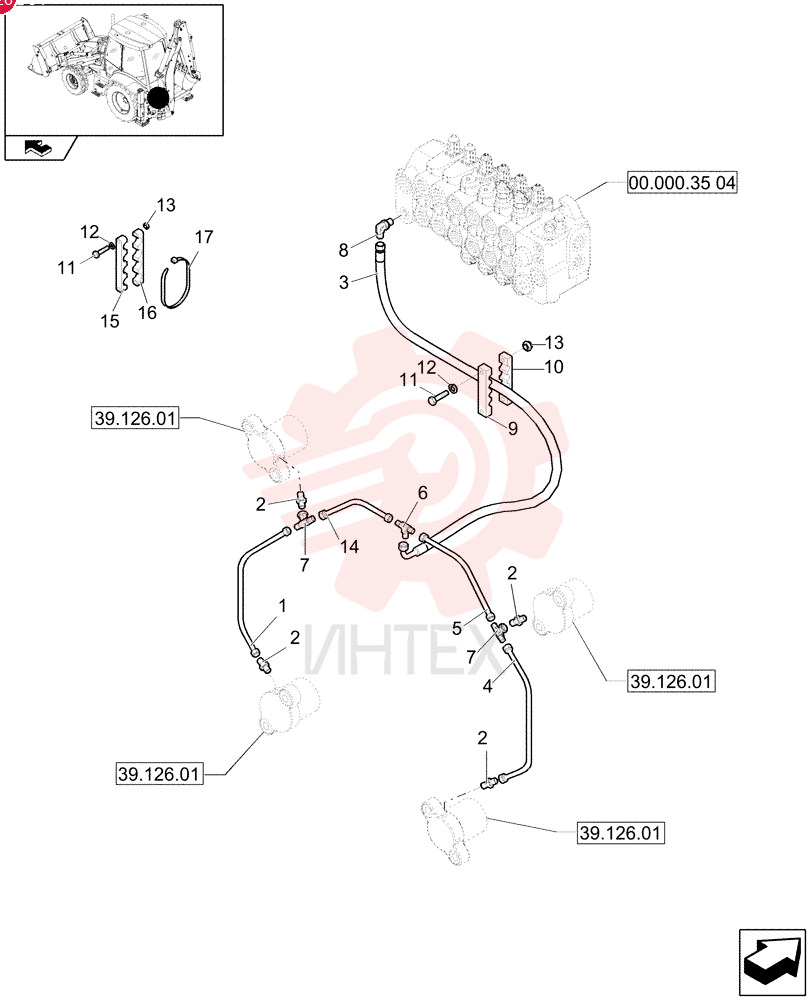

RIGID TUBE,4 mm ID x 6 mm OD x 342, 26 mm L

RIGID TUBE,4 mm ID x 6 mm OD x 342, 26 mm L

RIGID TUBE,4 mm ID x 6 mm OD x 342, 26 mm L

1 87576137

  • 87576137 - RIGID TUBE
  • 4 mm ID x 6 mm OD x 342
  • 26 mm L

2 85803333

  • 85803333 - HYD CONNECTOR
  • 7/16" - 20 JIC x 1/8" NPT

3 85819554

  • 85819554 - FLEXIBLE HOSE
  • 6.35mm ID x 1600mm L

4 87576141

  • 87576141 - RIGID TUBE
  • 4 mm ID x 6 mm OD x 342
  • 26 mm L

5 87576145

  • 87576145 - RIGID TUBE
  • 4 mm ID x 6 mm OD x 257
  • 46 mm L

6 85803334

  • 85803334 - TEE
  • 7/16-20 JIC x 7/16-20 JIC x 7/16-20 JIC

7 86513653

  • 86513653 - TEE
  • 7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

8 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

9 85817277

  • 85817277 - CLAMP
  • 6 Hoses

10 85817279

  • 85817279 - CLAMP
  • 6 Hoses

11 15213621

  • 15213621 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8
  • Full Thd

12 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

13 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

14 87576143

  • 87576143 - RIGID TUBE
  • 4 mm ID x 6 mm OD x 300
  • 46 mm L

15 85817230

  • 85817230 - CLAMP
  • 6 Hoses

16 85817231

  • 85817231 - CLAMP
  • 6 Hoses

17 85817474

  • 85817474 - HOSE CLIP
  • 100 - 120mm
