(B90B) - BACKHOE LOADER TIER 3 (2008)
/

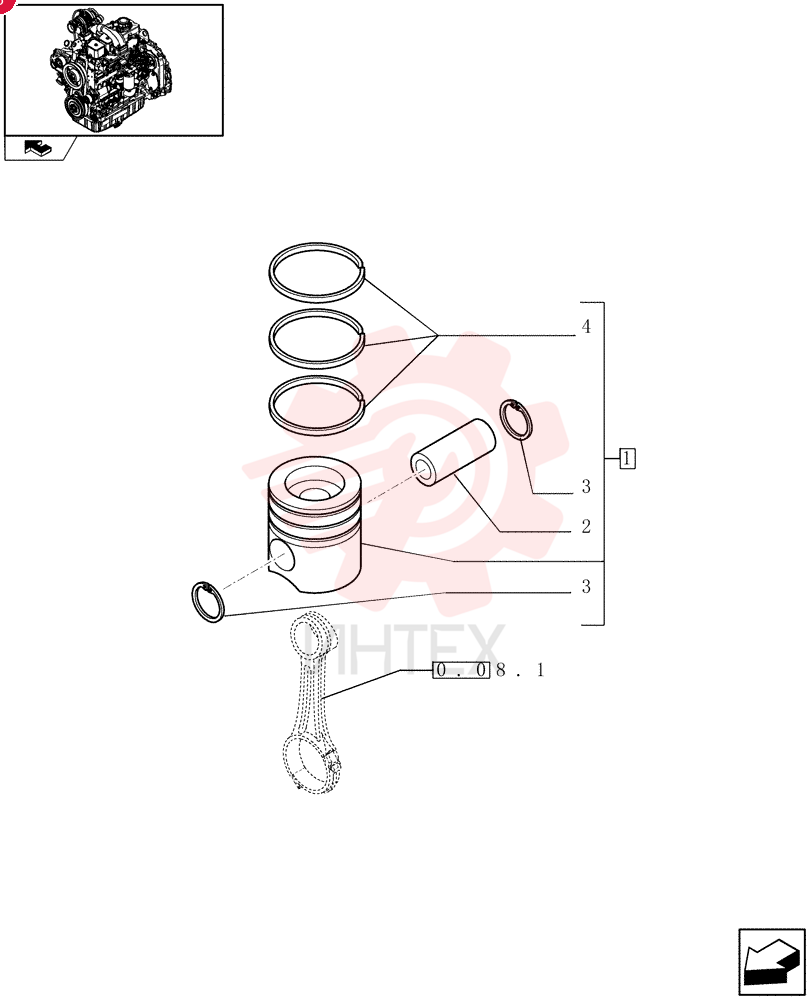

PISTON & RINGS KIT 8094740

PISTON & RINGS KIT 8094740

PISTON & RINGS KIT 8094740

1 8094740

  • 8094740 - PISTON & RINGS KIT

2 87317252

  • 87317252 - PISTON & RINGS KIT
  • 0.4mm Oversize

3 4892712

  • 4892712 - PISTON PIN
  • 38mm OD x 82mm L

4 2854030

  • 2854030 - SNAP RING
  • M40.8 OD

5 8094845

  • 8094845 - PISTON RINGS KIT

6 87316944

  • 87316944 - SET
  • PISTON RINGS+0.4
