(B90B) - BACKHOE LOADER TIER 3 (2008)
/

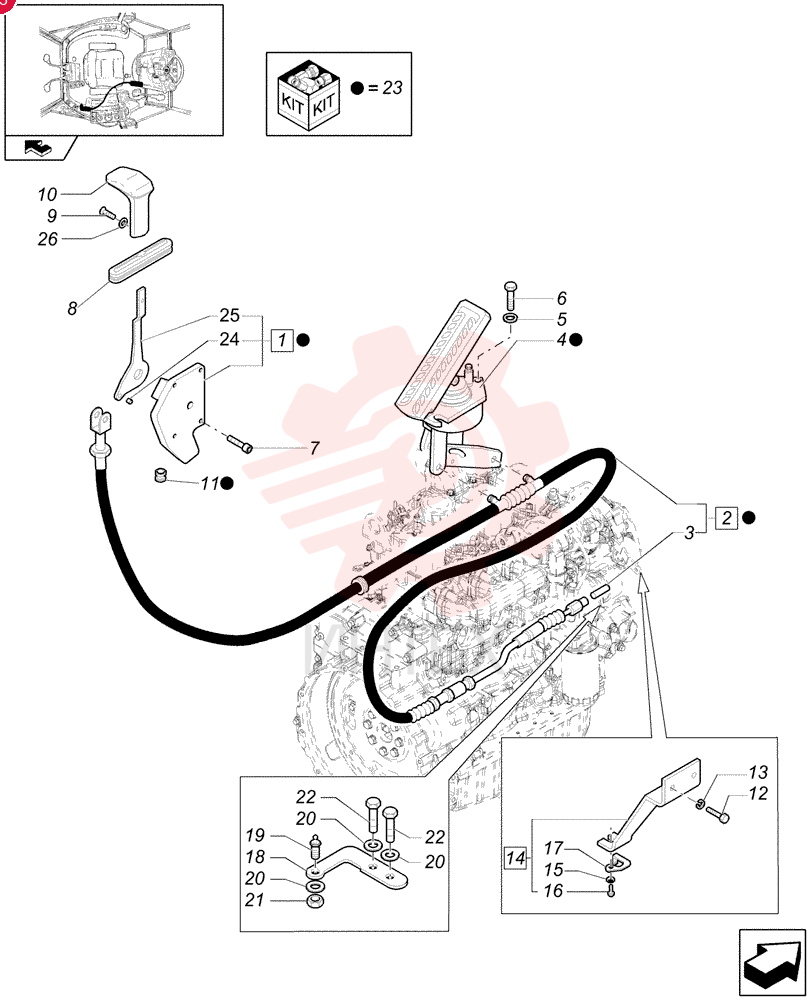

THROTTLE 84221360

THROTTLE 84221360

THROTTLE 84221360

1 84221360

  • 84221360 - THROTTLE

2 84221399

  • 84221399 - CABLE
  • 2177mm L

3 85813140

  • 85813140 - BALL JOINT HEAD

4 85813096

  • 85813096 - PEDAL

5 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

6 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

7 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

8 85803380

  • 85803380 - BOOT

9 13312721

  • 13312721 - SCREW
  • Cross Oval Hd
  • M6 x 10mm

10 82002692

  • 82002692 - KNOB

11 10398280

  • 10398280 - GROMMET
  • 14mm ID x 27mm OD x 11mm Thk

12 47049149

  • 47049149 - BOLT

13 47048994

  • 47048994 - SPRING WASHER

14 86988396

  • 86988396 - BRACKET

15 12604179

  • 12604179 - SPRING WASHER

16 13769401

  • 13769401 - RIVET

17 85803040

  • 85803040 - RETAINER

18 87420814

  • 87420814 - LEVER

19 85813311

  • 85813311 - BALL STUD
  • M6 x 1

20 47048991

  • 47048991 - LOCK WASHER

21 47049029

  • 47049029 - NUT

22 86977726

  • 86977726 - BOLT
  • Hex
  • M6 x 12mm
  • Cl 8.8

23 84221420

  • 84221420 - THROTTLE CONTROL

24 84162776

  • 84162776 - BUSHING

25 87747455

  • 87747455 - LEVER

26 12649601

  • 12649601 - WASHER
  • 6.15mm ID x 11.5mm OD x 2.5mm Thk
