(B90B) - BACKHOE LOADER TIER 3 (2008)
/

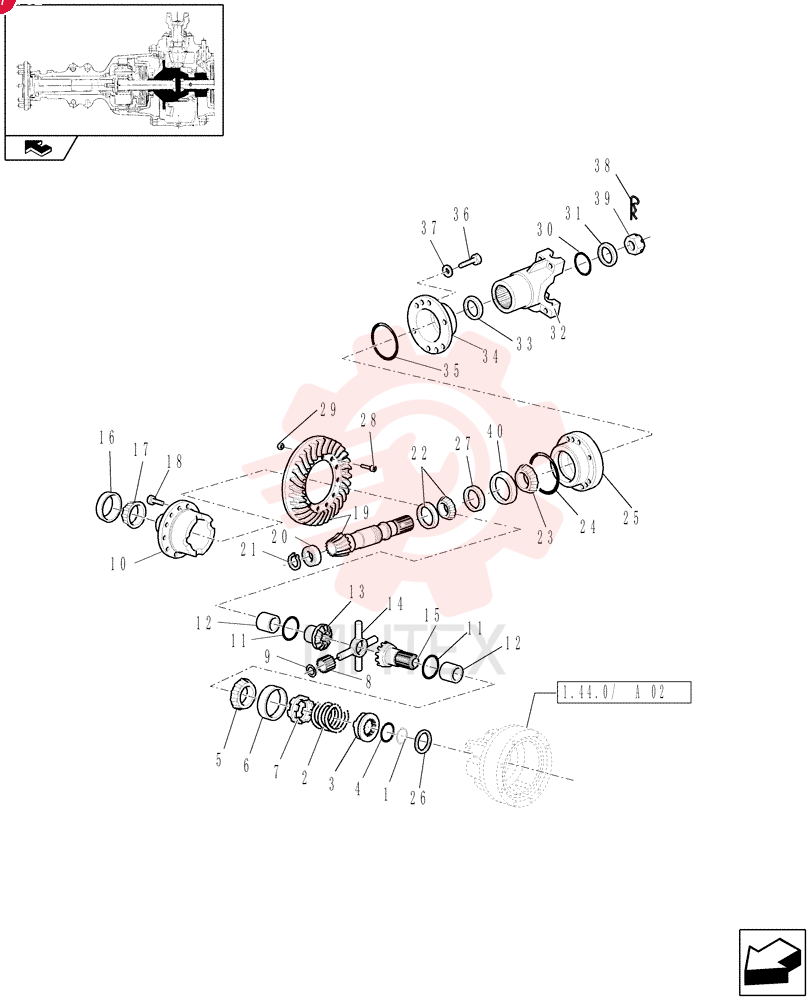

SNAP RING,2.37" ID 81803474 (1)

SNAP RING,2.37" ID 81803474 (1)

SNAP RING,2.37" ID 81803474 (1)

1 81803474

  • 81803474 - SNAP RING
  • 2.37" ID

2 81800474

  • 81800474 - SPRING

3 81812261

  • 81812261 - ADAPTER

4 81800475

  • 81800475 - WASHER
  • 64.64mm ID x 78.74mm OD x 3.25mm Thk

5 81803413

  • 81803413 - ROLLER BEARING
  • 107.95mm ID x 21.44mm W

6 81803420

  • 81803420 - BEARING CUP
  • 158.75mm OD x 15.88mm W

7 81800472

  • 81800472 - ADAPTER

8 81728114

  • 81728114 - PINION
  • 9 Teeth

9 83989915

  • 83989915 - THRUST WASHER
  • 1" x 2" x .060" Thk

10 81816246

  • 81816246 - HOUSING

11 81803424

  • 81803424 - THRUST WASHER
  • 76.2mm ID x 101.6mm OD x 1.58mm Thk

12 81800471

  • 81800471 - BUSHING
  • 72.08mm ID x 75.21mm OD x 31.75mm L

13 81803445

  • 81803445 - GEAR
  • 38 Teeth

14 81876885

  • 81876885 - SPIDER
  • 28.4mm Cap Dia
  • 179.3mm L

15 81803451

  • 81803451 - GEAR
  • 27 Teeth

16 82959375

  • 82959375 - BEARING ASSY
  • 112.74mm OD x 23.85mm W

17 80510884

  • 80510884 - ROLLER BEARING

18 83994579

  • 83994579 - LOCK BOLT
  • 1/2" - 13 x 2-7/8"
  • Gr 8

19 83958890

  • 83958890 - GEAR SET

20 81824478

  • 81824478 - BEARING ASSY
  • 30mm ID x 62mm OD x 19.05mm W

21 81803542

  • 81803542 - RING
  • 1.186" ID

22 82958966

  • 82958966 - BEARING ASSY
  • 44.45mm ID x 95.28mm OD x 31.16mm W

23 81845711

  • 81845711 - BEARING ASSY

24 81827354

  • 81827354 - O-RING
  • 0.139" Thk x 4.609" ID
  • -247
  • Cl 5
  • 75 Duro

25 81847146

  • 81847146 - RETAINER

26 81803515

  • 81803515 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.02mm Thk

27 81803516

  • 81803516 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.17mm Thk

28 81803517

  • 81803517 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.32mm Thk

29 81803518

  • 81803518 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.47mm Thk

30 81803519

  • 81803519 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.63mm Thk

31 81803520

  • 81803520 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.78mm Thk

32 81803521

  • 81803521 - SHIM
  • 96.52mm ID x 111.76mm OD x 1.93mm Thk

33 81803522

  • 81803522 - SHIM
  • 96.52mm ID x 111.76mm OD x 2.08mm Thk

34 81847148

  • 81847148 - SPACER

35 81847149

  • 81847149 - SPACER

36 81847150

  • 81847150 - SPACER

37 81847151

  • 81847151 - SPACER

38 81847152

  • 81847152 - SPACER

39 81847153

  • 81847153 - SPACER

40 81847154

  • 81847154 - SPACER

41 81847155

  • 81847155 - SPACER

42 81847156

  • 81847156 - SPACER

43 81847157

  • 81847157 - SPACER

44 81847158

  • 81847158 - SPACER

45 81847159

  • 81847159 - SPACER

46 81847160

  • 81847160 - SPACER

47 81847161

  • 81847161 - SPACER

48 81847162

  • 81847162 - SPACER

49 83957533

  • 83957533 - SCREW
  • Pan HD
  • 1/2" - 20 x 1-5/8"
  • Gr 8

50 83417169

  • 83417169 - NUT
  • 1/2"-20
  • GA

51 81845714

  • 81845714 - SEAL

52 81834042

  • 81834042 - WASHER
  • 32.5mm ID x 53.8mm OD x 5.6mm Thk

53 83949810

  • 83949810 - FLANGE

54 81834073

  • 81834073 - OIL SEAL
  • 66.67mm ID x 89.03mm OD x 11mm Thk

55 83912246

  • 83912246 - RETAINER

56 81845713

  • 81845713 - SEAL

57 81821267

  • 81821267 - BOLT

58 80280248

  • 80280248 - LOCK WASHER

59 83947107

  • 83947107 - PIN

60 83949812

  • 83949812 - SLOTTED NUT

61 81812385

  • 81812385 - BEARING ASSY
  • 88.92mm OD x 23.07mm W
