(B90B) - BACKHOE LOADER TIER 3 (2008)
/

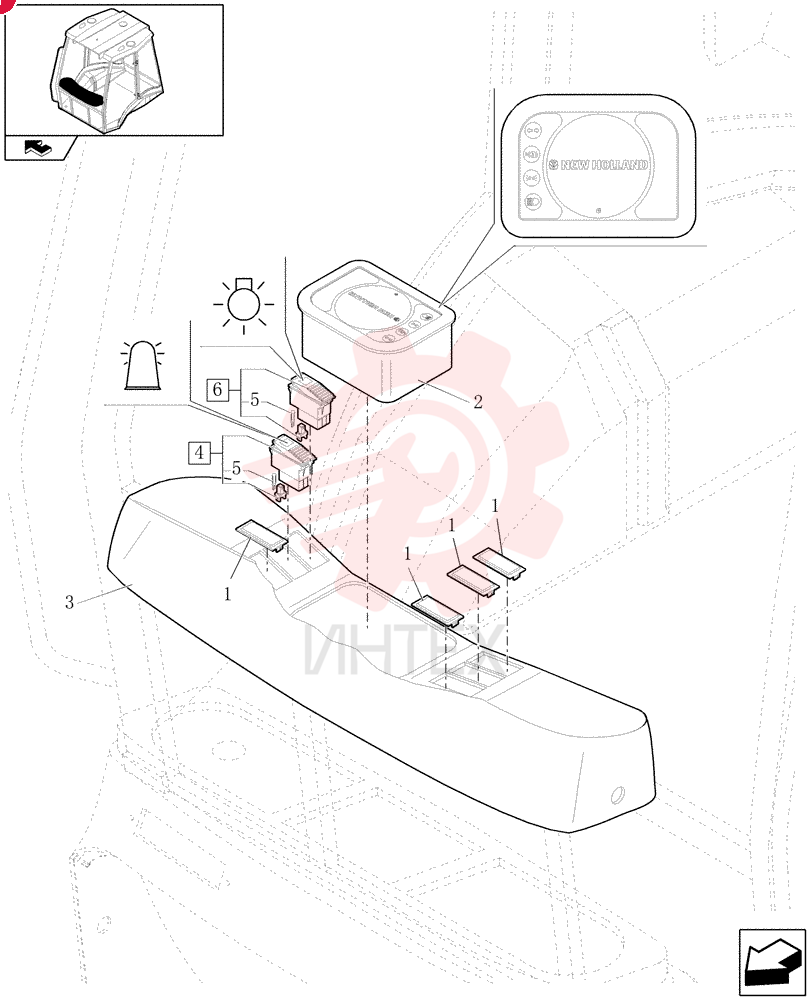

PLUG 85825254 (4)

PLUG 85825254 (4)

PLUG 85825254 (4)

1 85825254

  • 85825254 - PLUG

2 87521741

  • 87521741 - INSTRUMENT PANEL

3 85818826

  • 85818826 - DASHBOARD

4 85818827

  • 85818827 - BEACON SWITCH

5 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

6 85818828

  • 85818828 - LIGHT SWITCH
