(B90B) - BACKHOE LOADER TIER 3 (2008)
/

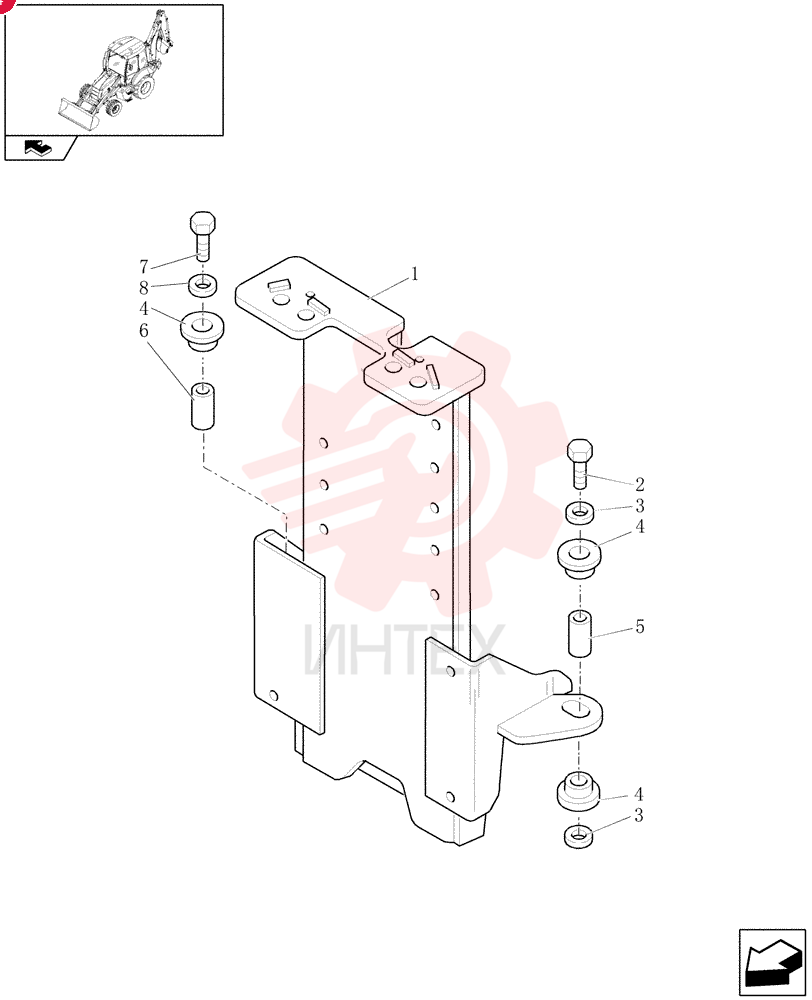

SUPPORT 85820167

SUPPORT 85820167

SUPPORT 85820167

1 85820167

  • 85820167 - SUPPORT

2 15215821

  • 15215821 - BOLT
  • Hex
  • M12 x 1.75 x 60mm
  • Cl 8.8
  • Full Thd

3 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

4 87348165

  • 87348165 - ISOLATOR

5 85817252

  • 85817252 - BUSHING
  • 12.5mm ID x 16.5mm OD x 24mm L

6 85820172

  • 85820172 - BUSHING
  • 12.5mm ID x 16.5mm OD x 22mm L

7 15216421

  • 15216421 - BOLT
  • Hex
  • M12 x 1.75 x 90mm
  • Cl 8.8
  • Full Thd

8 85820170

  • 85820170 - SPACER
  • 13mm ID x 40mm OD x 38mm L
