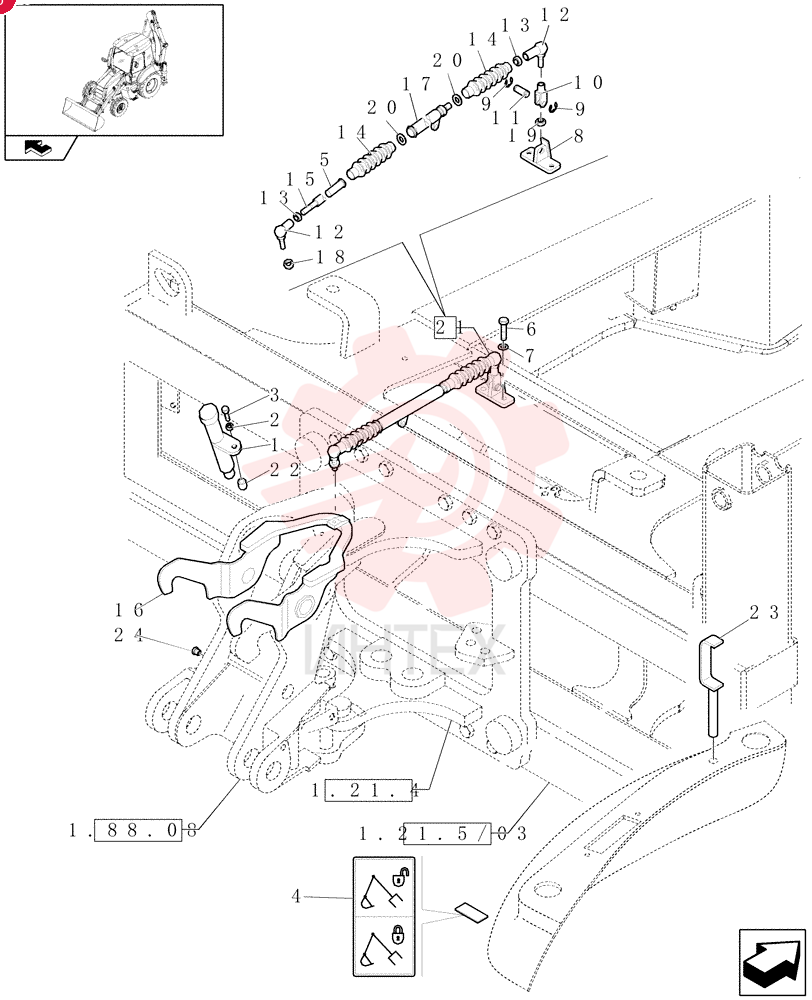

SHOCK ABSORBER 85821268 (2)
1 85821268
- 85821268 - SHOCK ABSORBER
2 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
3 16043621
- 16043621 - BOLT
- Hex
- M8 x 1.25 x 25mm
- Cl 8.8
- Full Thd
4 85812278
- 85812278 - DECAL
5 85819482
- 85819482 - BUSHING
6 11106221
- 11106221 - SCREW
- Hex
- M10 x 25mm
- Cl 8.8
- Full Thd
7 11190579
- 11190579 - BELLEVILLE WASHER
- M10 Bolt Size x 20mm OD x 2.3mm Thk
8 85819485
- 85819485 - BASE
9 85813407
- 85813407 - RING
10 85819468
- 85819468 - CLEVIS
11 87302958
- 87302958 - CLEVIS PIN
12 85819477
- 85819477 - BALL JOINT
13 85819478
- 85819478 - NUT
14 85819479
- 85819479 - BELLOWS
15 85819481
- 85819481 - ROD
16 87480321
- 87480321 - LATCH HOOK
17 85819480
- 85819480 - TUBE
18 85821270
- 85821270 - WASHER
19 85821271
- 85821271 - NUT
20 85824227
- 85824227 - CLAMP
21 87302956
- 87302956 - TIE-ROD
22 87475733
- 87475733 - SPACER
- 12.7mm ID x 26.9mm OD x 10mm L
23 87610834
- 87610834 - PIN
- 35mm OD x 120mm L
24 81870039
- 81870039 - FASTENER
- M8 x 1.5 x 22mm
