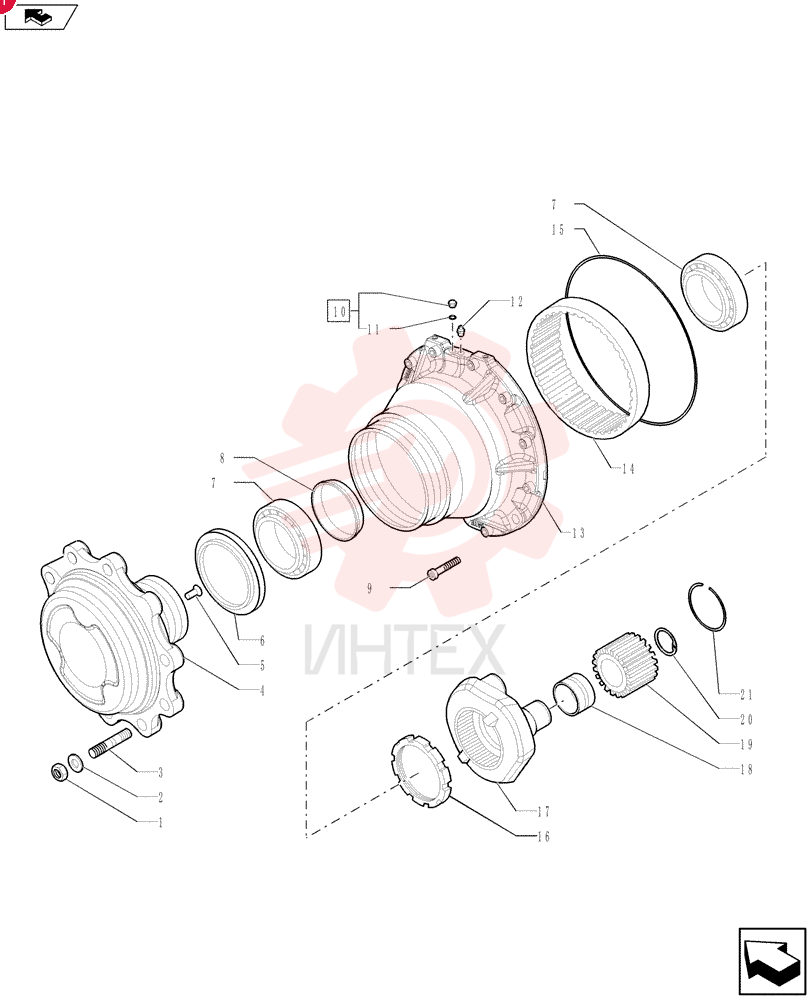

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
NUT 84314332

NUT 84314332

NUT 84314332

1 84314332

  • 84314332 - NUT

2 84314334

  • 84314334 - WASHER
  • 22.8mm ID x 44.5mm OD x 5.56mm Thk

3 85808260

  • 85808260 - STUD

4 87708445

  • 87708445 - FLANGE

5 K395093

  • K395093 - HEADED PIN
  • 12mm OD x 15mm L

6 87415728

  • 87415728 - OIL SEAL

7 K395101

  • K395101 - TAPERED BEARING
  • 109.5mm ID x 126mm x 21.4mm L

8 87708447

  • 87708447 - SPACER

9 403955A1

  • 403955A1 - BOLT

10 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

11 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

12 E135810

  • E135810 - VENTING SCREW

13 87708466

  • 87708466 - GEAR SET

14 87708467

  • 87708467 - RING GEAR

15 87711038

  • 87711038 - RING

16 87708454

  • 87708454 - RING NUT

17 87708452

  • 87708452 - PLANET CARRIER

18 87708444

  • 87708444 - ROLLER BEARING

19 87708967

  • 87708967 - GEAR
  • 31T

20 800-1150

  • 800-1150 - SNAP RING
  • M50
  • Ext

21 87708453

  • 87708453 - SNAP RING
