New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

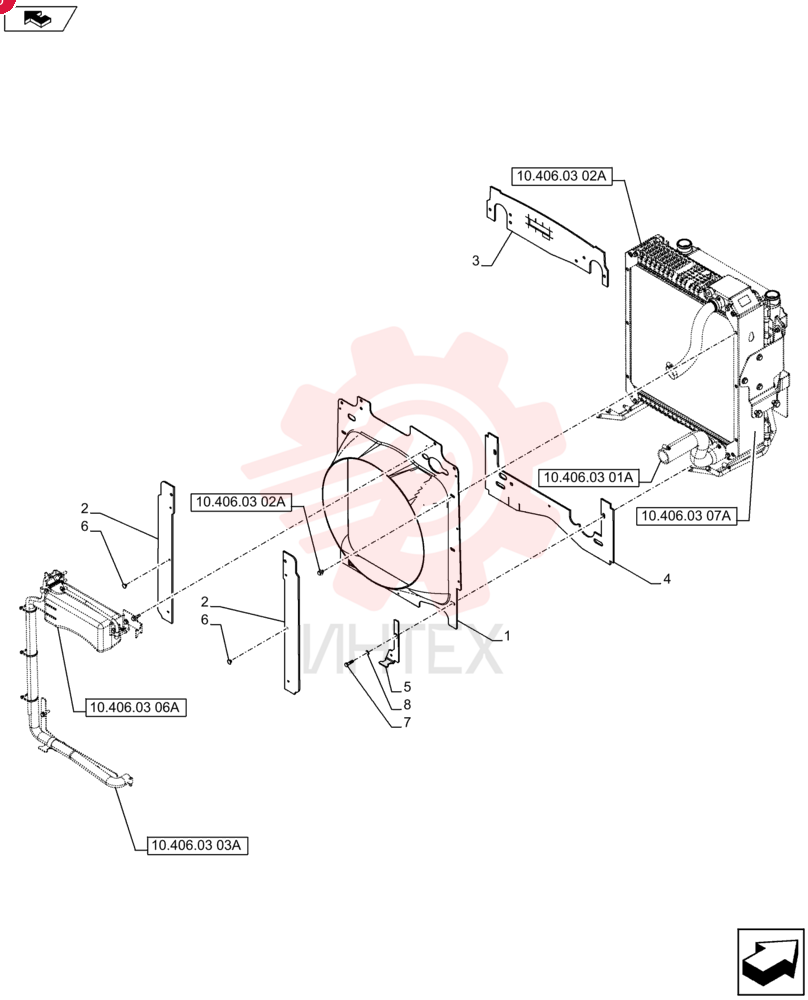

SHROUD 84350176 (2)

SHROUD 84350176 (2)

SHROUD 84350176 (2)

1 84350176

  • 84350176 - SHROUD

2 47829468

  • 47829468 - SEAL
  • 606mm L x 72.7mm W x 5mm Thk

3 47611709

  • 47611709 - SEAL
  • 5mm Thk

4 84539940

  • 84539940 - SEAL
  • 5mm Thk

5 87446081

  • 87446081 - RETAINING PLATE
  • 195mm x 62mm x 43mm L

6 87301355

  • 87301355 - RIVET
  • Pop
  • 3/16" x .575"

7 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

8 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk
