New Holland Construction
/

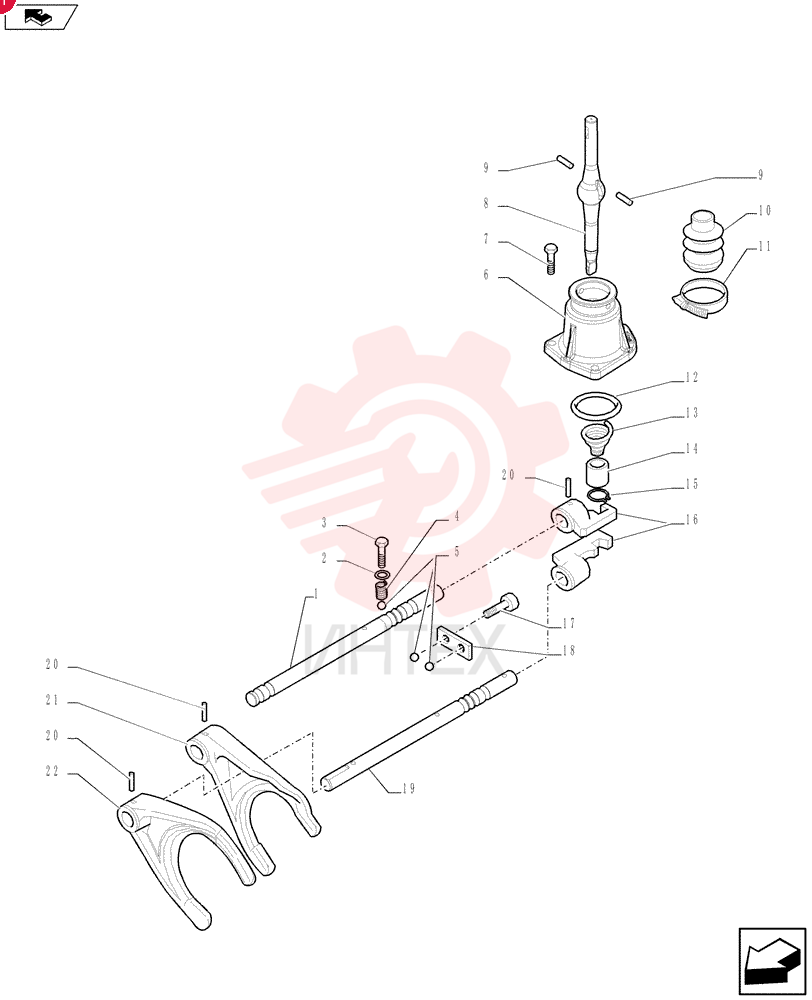

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
PIN 84336839

PIN 84336839

PIN 84336839

1 84336839

  • 84336839 - PIN

2 87429994

  • 87429994 - SEALING WASHER
  • 12mm ID x 20mm OD x 1.5mm Thk

3 87701338

  • 87701338 - BOLT
  • M10 x 1.5 x 25 - 8.8

4 1966993C1

  • 1966993C1 - SPRING

5 181139A1

  • 181139A1 - BALL
  • 10mm OD

6 181171A1

  • 181171A1 - COVER

7 864-8025

  • 864-8025 - HEX SOC SCREW
  • M8 x 25mm
  • Cl 8.8

8 84336842

  • 84336842 - CONTROL LEVER

9 1967585C1

  • 1967585C1 - PIN

10 1967581C1

  • 1967581C1 - BOOT

11 181177A1

  • 181177A1 - CLAMP

12 181138A1

  • 181138A1 - O-RING
  • 0.103" Thk x 2.362" ID
  • -142
  • Cl 5
  • 75 Duro

13 278533A1

  • 278533A1 - SPRING

14 278532A1

  • 278532A1 - BUSHING

15 279039A1

  • 279039A1 - RING
  • SNAP

16 84211368

  • 84211368 - LEVER

17 864-10025

  • 864-10025 - HEX SOC SCREW
  • M10 x 25mm
  • Cl 8.8

18 181175A1

  • 181175A1 - PLATE

19 84336841

  • 84336841 - ROD

20 905794R1

  • 905794R1 - PIN
  • M6 x 30
  • Coiled

21 181174A2

  • 181174A2 - SHIFTER FORK

22 181203A1

  • 181203A1 - SHIFTER FORK
