(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

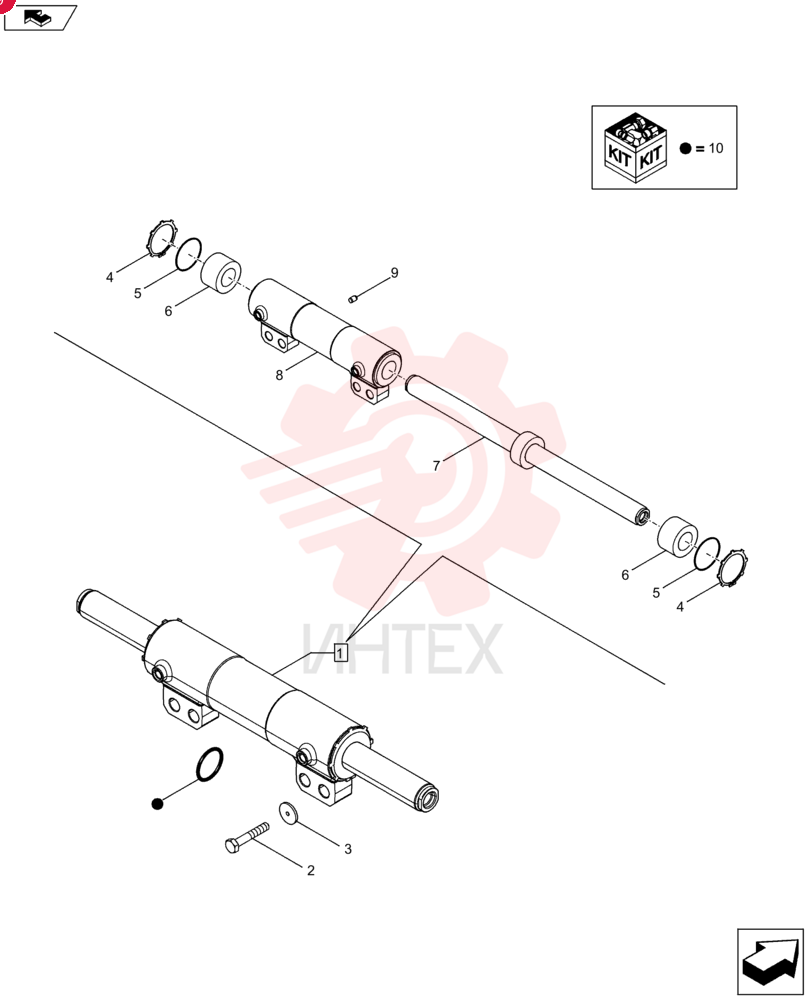

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (2)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (2)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (2)

1 84264406

  • 84264406 - STEERING CYLINDER
  • Double Acting
  • 40mm Rod
  • 70mm Bore
  • 249mm Stroke

2 84273744

  • 84273744 - LOCK BOLT
  • Hex
  • Lock
  • M12 x 1.75 x 30mm
  • Cl. 10.9

3 84349418

  • 84349418 - WASHER
  • 19mm ID x 34mm OD x 3mm Thk

4 84276995

  • 84276995 - CIRCLIP
  • 70mm Special

5 84276996

  • 84276996 - SNAP RING
  • 70mm OD x 2mm Thk

6 84276994

  • 84276994 - CYLINDER END CAP

7 84276953

  • 84276953 - ROD

8 NSS

  • NSS - NOT SOLD SEPARAT

9 10839710

  • 10839710 - DOWEL
  • M10 x 15.00mm

10 84331720

  • 84331720 - SEAL KIT
