(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

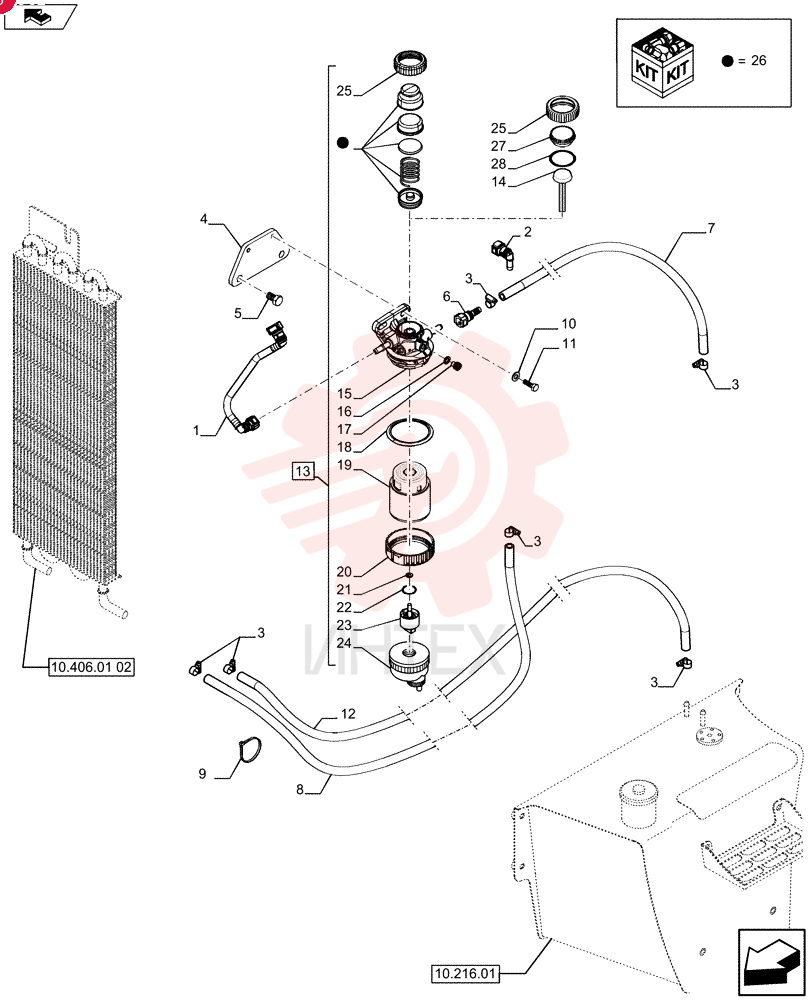

RIGID TUBE 84391629

RIGID TUBE 84391629

RIGID TUBE 84391629

1 84391629

  • 84391629 - RIGID TUBE

2 84425860

  • 84425860 - FITTING
  • 90 Degree
  • for Fuel Hose 9.5mm ID

3 85824381

  • 85824381 - HOSE CLAMP
  • 8mm - 16mm

4 84391569

  • 84391569 - BRACKET

5 47432274

  • 47432274 - PLATE

6 43151

  • 43151 - BOLT
  • Hex
  • M12 x 20mm
  • Cl 8.8
  • Full Thd

7 84387763

  • 84387763 - FITTING

8 84488618

  • 84488618 - FUEL HOSE
  • 9.53mm ID x 1100mm L
  • SAE 30R2

9 84488624

  • 84488624 - FUEL HOSE

10 14560187

  • 14560187 - COLLAR
  • 199mm L

11 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

12 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8

13 84489323

  • 84489323 - FUEL HOSE
  • 9.5mm ID x 1630mm L

14 84392298

  • 84392298 - FILTER

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 87840177

  • 87840177 - O-RING

18 87840178

  • 87840178 - PLUG

19 87840171

  • 87840171 - SEAL

20 87803443

  • 87803443 - ELEMENT
  • 79.2mm OD x 109.2mm L

21 87840170

  • 87840170 - LOCKING RING

22 87612469

  • 87612469 - SEALING WASHER

23 87612471

  • 87612471 - SEAL

24 87612475

  • 87612475 - SENSOR

25 87801005

  • 87801005 - KIT

26 87840173

  • 87840173 - RETAINER

27 87612472

  • 87612472 - KIT

28 NSS

  • NSS - NOT SOLD SEPARAT

29 87840174

  • 87840174 - O-RING
