(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

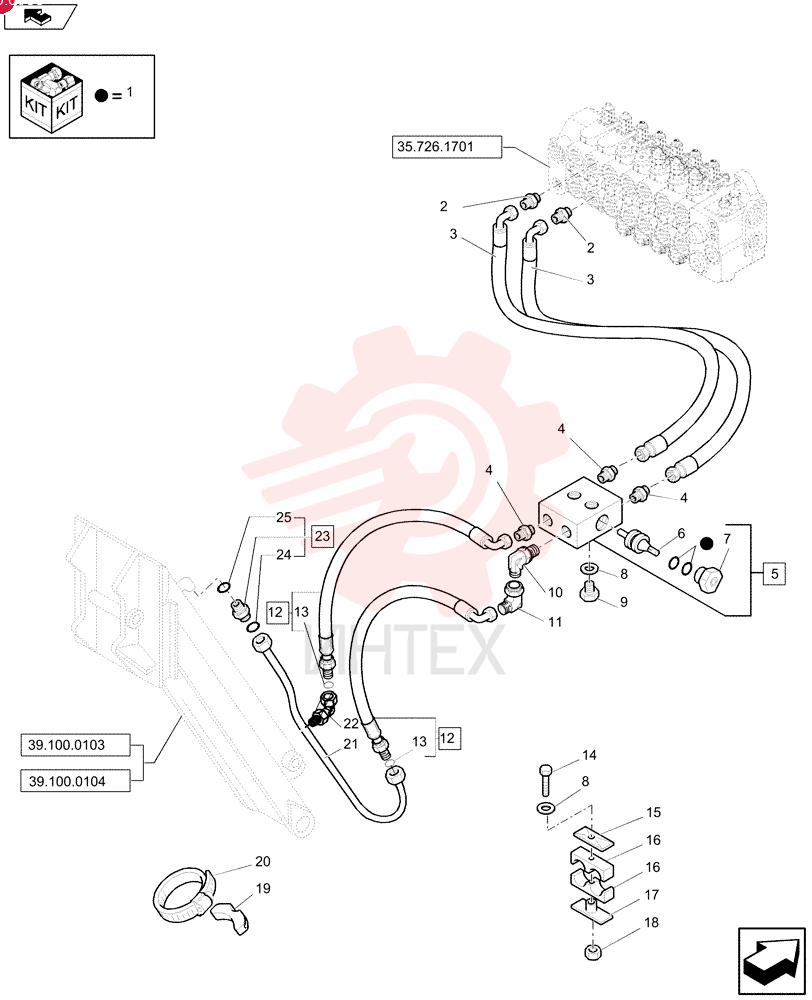

SEAL 85821126 (1)

SEAL 85821126 (1)

SEAL 85821126 (1)

1 85821126

  • 85821126 - SEAL

2 85805258

  • 85805258 - HYD CONNECTOR
  • 9/16"-16 ORS x 1 1/16"-12
  • O-Ring

3 85807873

  • 85807873 - FLEXIBLE HOSE
  • 9.53mm ID x 946mm L

4 83985067

  • 83985067 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 9/16" - 18 ORB

5 85802820

  • 85802820 - CHECK VALVE

6 85820159

  • 85820159 - PLUNGER

7 85820160

  • 85820160 - HYDRAULIC VALVE

8 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

9 16044421

  • 16044421 - SCREW
  • Hex
  • M8 x 60mm
  • Cl 8.8

10 83983763

  • 83983763 - 90 ELBOW
  • 13/16"-16 ORFS x 9/16"-18 ORB

11 86511208

  • 86511208 - ELBOW
  • 23.81 Hex x 13/16-16

12 85807874

  • 85807874 - FLEXIBLE HOSE
  • 9.53mm ID x 1676mm L

13 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

14 15213621

  • 15213621 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8
  • Full Thd

15 87390514

  • 87390514 - PLATE

16 87390511

  • 87390511 - CLAMP
  • 16mm ID

17 87390534

  • 87390534 - PLATE

18 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

19 87303912

  • 87303912 - BLOCK

20 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

21 85802620

  • 85802620 - HYD TUBE

22 85802965

  • 85802965 - ELBOW
  • 3/4-16 UN x 13/16-16 UN

23 83963374

  • 83963374 - FITTING
  • 13/16"-16 ORFS x 3/4"-16 ORB

24 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

25 80128825

  • 80128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro
