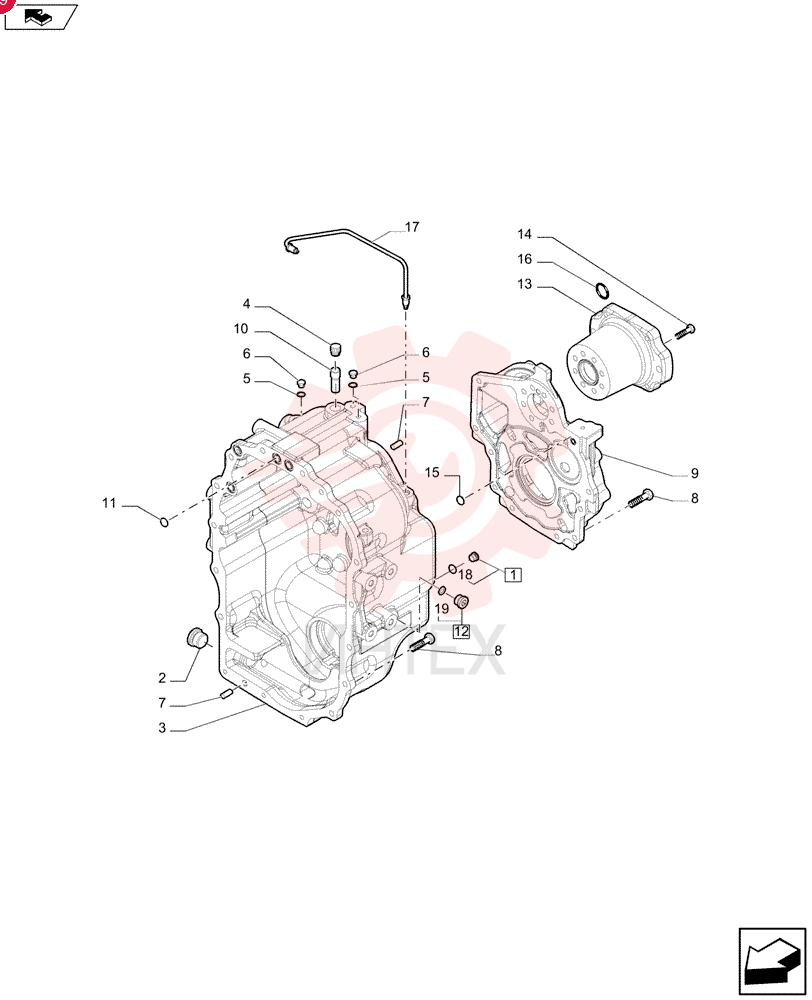

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
PLUG,9/16" - 18 ORB 9625178 (3)

PLUG,9/16" - 18 ORB 9625178 (3)

PLUG,9/16" - 18 ORB 9625178 (3)

1 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

2 100557A1

  • 100557A1 - PLUG
  • DRAIN
  • M30 x 2

3 87701777

  • 87701777 - TRANSMISSION HOUSING

4 1530028C1

  • 1530028C1 - BREATHER

5 934667R1

  • 934667R1 - SEALING RING
  • M10 x 14 x 1

6 181100A1

  • 181100A1 - PLUG
  • 1/8 CAS x 8

7 K260177

  • K260177 - PIN

8 614-10030

  • 614-10030 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 8.8
  • Full Thd

9 87701257

  • 87701257 - COVER

10 310772A1

  • 310772A1 - VENTILATION PIPE
  • 18 mm OD
  • 42 mm Length

11 181141A1

  • 181141A1 - O-RING
  • 17.12mm ID x 2.62mm Width

12 1725741

  • 1725741 - PLUG
  • M20 x 1.5 x 14mm

13 87701269

  • 87701269 - FLANGE

14 87701258

  • 87701258 - BOLT
  • M10 x 1.5 x 45mm L

15 5194294

  • 5194294 - RUBBER RING

16 87429982

  • 87429982 - O-RING

17 87701270

  • 87701270 - PIPE

18 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

19 84288623

  • 84288623 - SEAL
  • 17.8mm ID x 22.9mm OD x 1.5mm Thk
