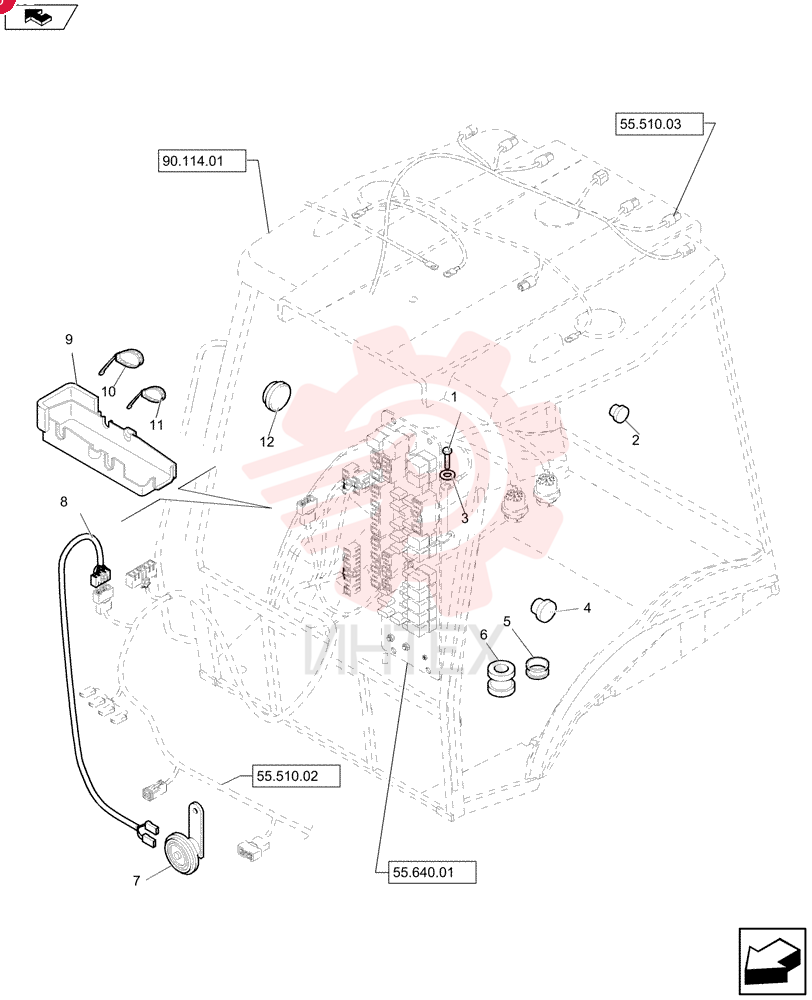

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1 16043121

  • 16043121 - SCREW
  • Hex
  • M8 x 1.25 x 14mm
  • Cl 8.8
  • Full Thd

2 85802310

  • 85802310 - PLUG
  • Black

3 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 79111978

  • 79111978 - PLUG
  • 23mm OD

5 10398680

  • 10398680 - GROMMET
  • 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk

6 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

7 87689317

  • 87689317 - HORN

8 87552128

  • 87552128 - ELECTRIC CABLE

9 85825136

  • 85825136 - COVER

10 85805383

  • 85805383 - CABLE TIE

11 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

12 85808460

  • 85808460 - PLUG
