New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

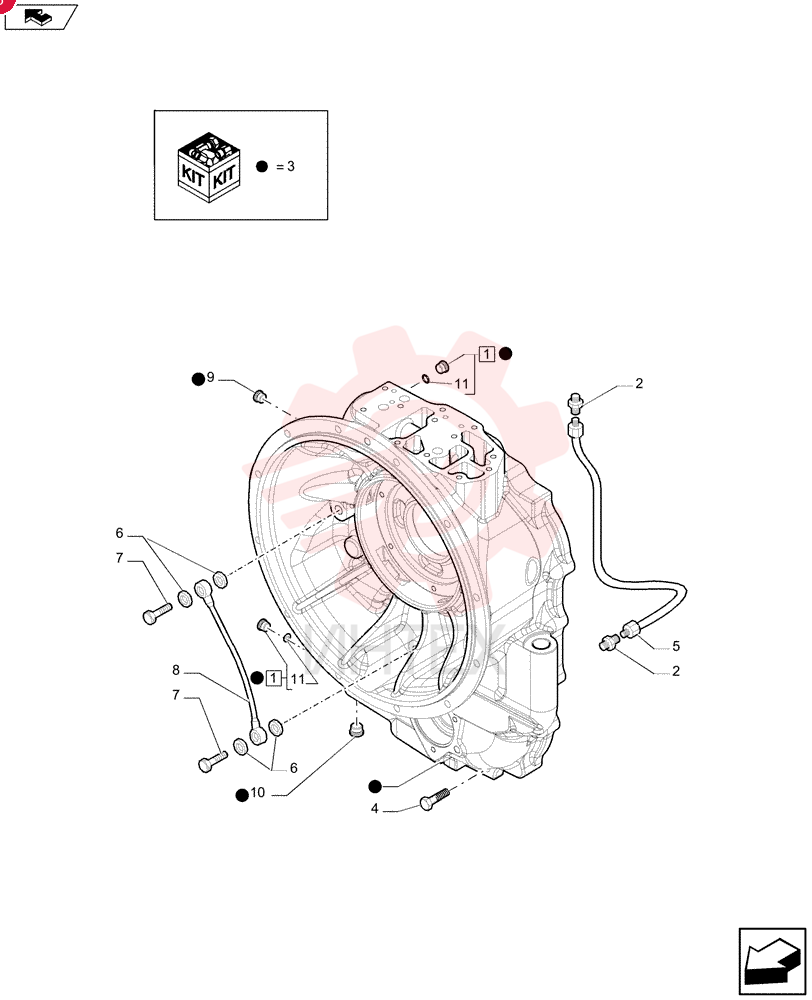

PLUG,9/16" - 18 ORB 9625178 (1)

PLUG,9/16" - 18 ORB 9625178 (1)

PLUG,9/16" - 18 ORB 9625178 (1)

1 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

2 218-1023

  • 218-1023 - HYD CONNECTOR
  • 1/2"-20
  • 37 Degree x 1/4"-18
  • NPTF

3 84210804

  • 84210804 - TRANSMISSION HOUSING

4 614-10030

  • 614-10030 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 8.8
  • Full Thd

5 181176A1

  • 181176A1 - TUBE

6 181105A1

  • 181105A1 - SEALING WASHER
  • 14mm ID x 20mm OD x 1.5mm Thk

7 181179A1

  • 181179A1 - BANJO BOLT

8 181232A1

  • 181232A1 - TUBE

9 181101A1

  • 181101A1 - PLUG
  • M14 x 1.5

10 239606A1

  • 239606A1 - PLUG

11 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
