(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

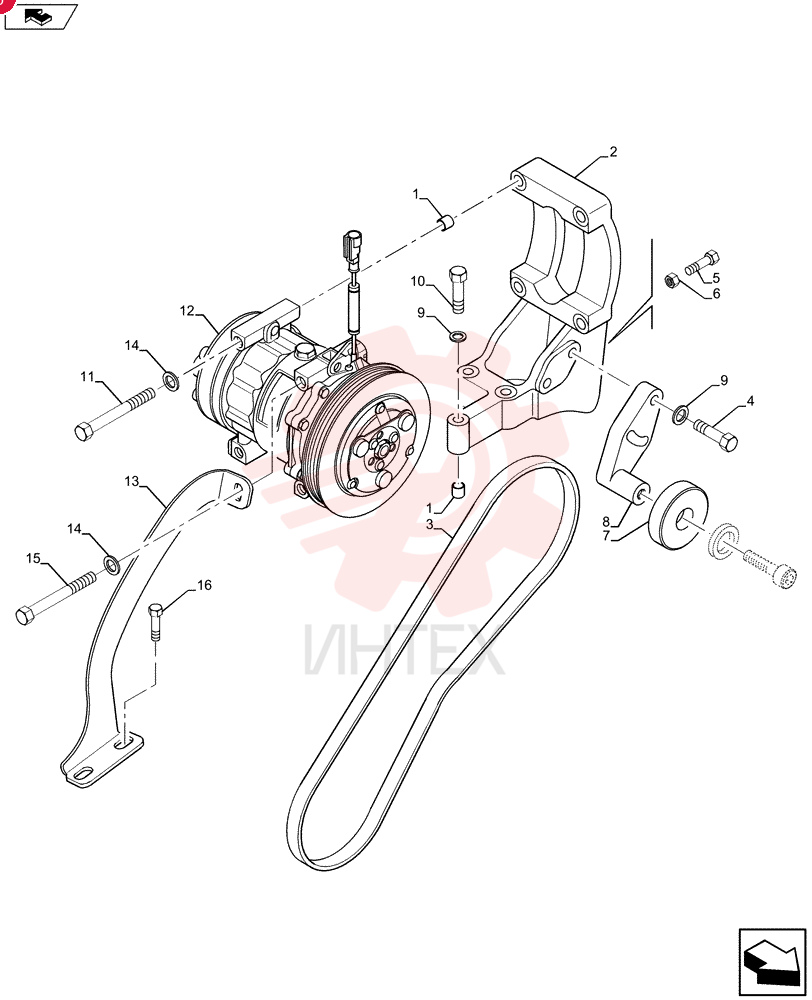

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

1 87429952

  • 87429952 - SLEEVE
  • 8.5mm ID x 11.132mm OD x 9mm L

2 84548639

  • 84548639 - BRACKET

3 84591722

  • 84591722 - V-BELT
  • 14.25mm W x 1165mm L
  • 4 Ribs

4 827-8035

  • 827-8035 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 10.9

5 614-10070

  • 614-10070 - BOLT
  • Hex
  • M10 x 1.5 x 70mm
  • Cl 8.8
  • Full Thd

6 829-1410

  • 829-1410 - NUT
  • M10 x 1.5
  • Cl 10.9

7 87548073

  • 87548073 - IDLER

8 87551299

  • 87551299 - SUPPORT

9 87655042

  • 87655042 - SPECIAL WASHER
  • 8.8mm ID x 17.5mm OD x 2.2mm Thk

10 86516395

  • 86516395 - BOLT
  • Hex
  • M8 x 1.25 x 90mm
  • Cl 10.9

11 827-8100

  • 827-8100 - BOLT
  • Hex
  • M8 x 1.25 x 100mm
  • Cl 10.9

12 84356660

  • 84356660 - AIRCOND. COMPRESSOR

13 47693200

  • 47693200 - AIRCOND. COMPRESSOR
  • 12V
  • 45W_W/ Pulley 156mm D

14 84546916

  • 84546916 - BRACKET

15 12645031

  • 12645031 - WASHER
  • 8.45mm ID x 21mm OD x 3mm Thk

16 86516527

  • 86516527 - BOLT
  • Hex
  • M8 x 110mm
  • Cl 10.9

17 9804261

  • 9804261 - BOLT
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd
