New Holland Construction
/

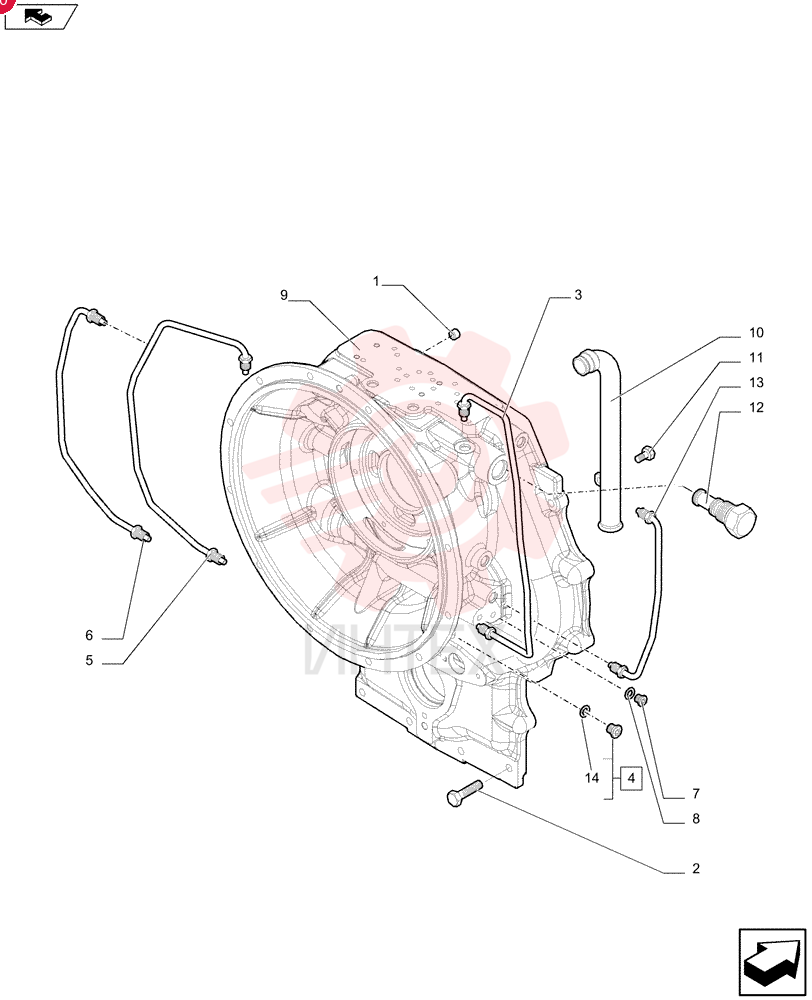

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
RIVET,7mm OD

RIVET,7mm OD

RIVET,7mm OD

1 87701779

  • 87701779 - RIVET
  • 7mm OD

2 9706704

  • 9706704 - BOLT
  • Hex
  • M10 x 1.5 x 41.58mm
  • Cl 8.8

3 87705444

  • 87705444 - TUBE

4 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

5 84336869

  • 84336869 - PIPE

6 84336868

  • 84336868 - PIPE

7 181100A1

  • 181100A1 - PLUG
  • 1/8 CAS x 8

8 87317058

  • 87317058 - WASHER
  • 10mm ID x 14mm OD x 1mm Thk

9 84336866

  • 84336866 - HOUSING

10 87705438

  • 87705438 - PIPE

11 120104

  • 120104 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

12 87705439

  • 87705439 - VALVE

13 87705441

  • 87705441 - TUBE

14 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
