New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

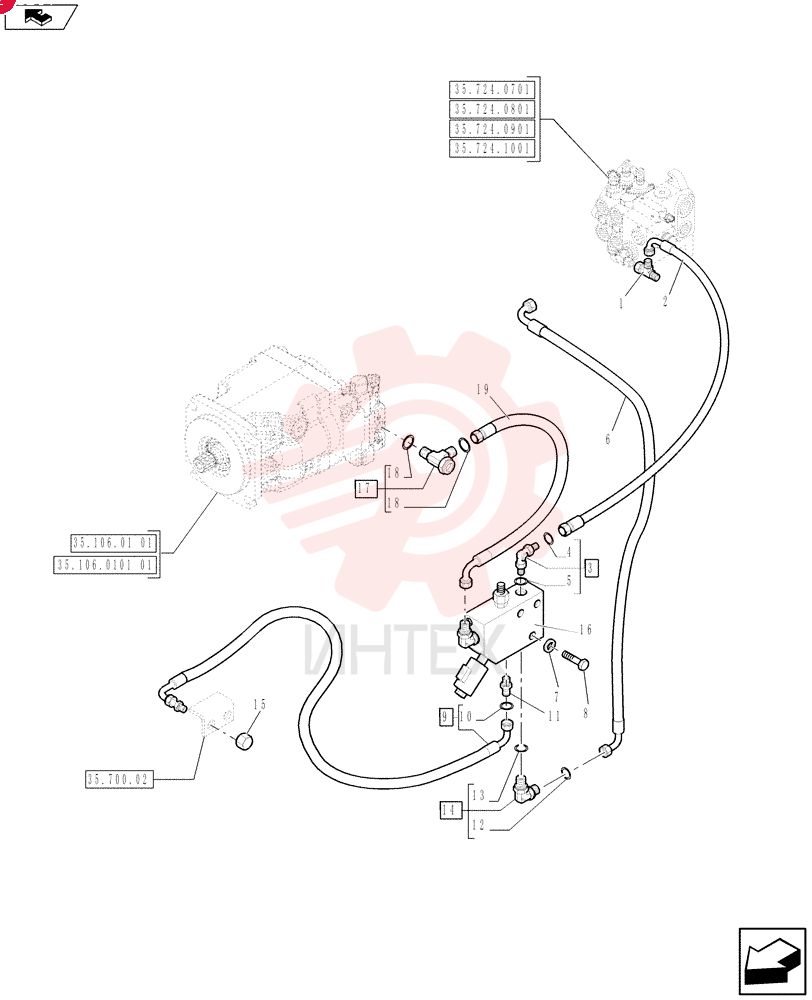

TEE,1-7/16"-12 ORFS to Swivel

TEE,1-7/16"-12 ORFS to Swivel

TEE,1-7/16"-12 ORFS to Swivel

1 86641295

  • 86641295 - TEE
  • 1-7/16"-12 ORFS to Swivel

2 84364724

  • 84364724 - FLEXIBLE HOSE
  • 19mm ID x 630mm L

3 9846956

  • 9846956 - 90 ELBOW
  • 90 Degree
  • 1-7/16"-12 x 1-1/16"-12
  • Adj
  • ORFS

4 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

5 9824050

  • 9824050 - O-RING
  • 0.07" Thk x 0.926" ID
  • -21
  • Cl 6
  • 90 Duro

6 87621913

  • 87621913 - FLEXIBLE HOSE
  • 15.9mm ID x 770mm L

7 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

8 16044521

  • 16044521 - SCREW
  • Hex
  • M8 x 65mm
  • Cl 8.8

9 87619499

  • 87619499 - FLEXIBLE HOSE
  • 12.7mm ID x 1231mm L

10 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

11 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

12 81844851

  • 81844851 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro

13 81845037

  • 81845037 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

14 83961741

  • 83961741 - 90 ELBOW
  • 11/16"-16 ORFS x 9/16"-18 ORB

15 83987627

  • 83987627 - CAP
  • 1-14UN-2A

16 87545337

  • 87545337 - VALVE

17 84989848

  • 84989848 - TEE
  • 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

18 9993141

  • 9993141 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro

19 84121389

  • 84121389 - FLEXIBLE HOSE
  • 8mm ID x 1250mm L
