New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

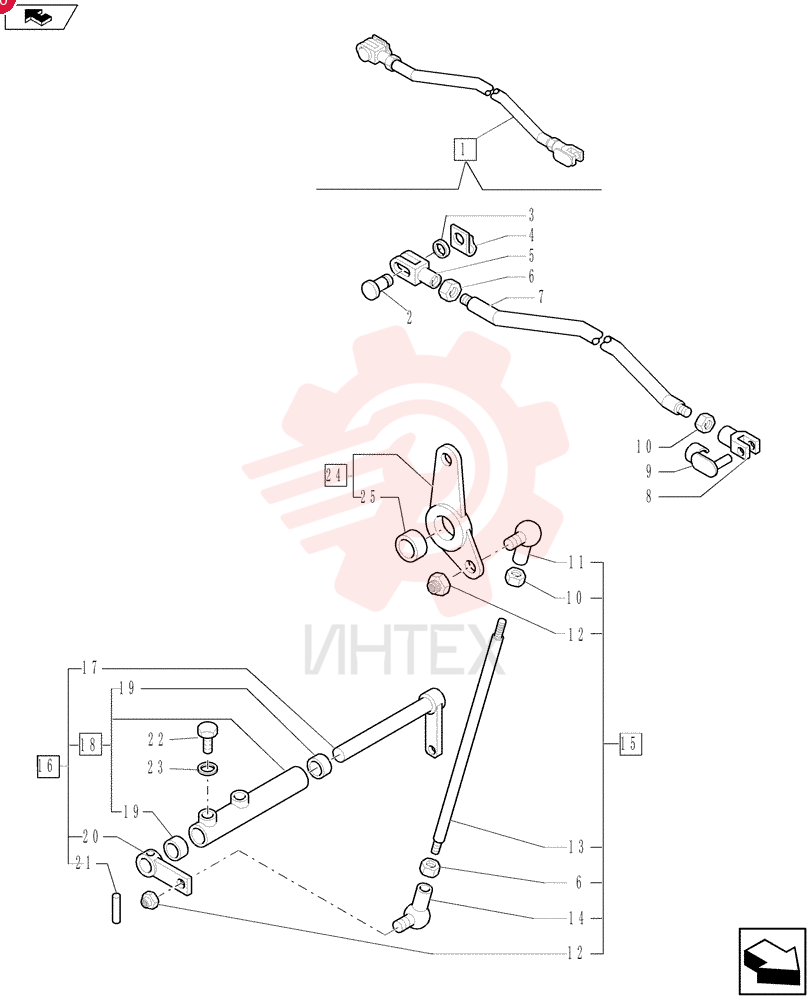

TIE-ROD,558mm L

TIE-ROD,558mm L

TIE-ROD,558mm L

1 87482705

  • 87482705 - TIE-ROD
  • 558mm L

2 85802737

  • 85802737 - PIN
  • 8mm OD x 28.5mm L

3 14496521

  • 14496521 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

4 11064071

  • 11064071 - CLIP
  • M8 x 6 x 0.94mm

5 85802735

  • 85802735 - CLEVIS
  • M8

6 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

7 87482704

  • 87482704 - TIE-ROD
  • M8 x 492mm L

8 11991971

  • 11991971 - CLEVIS
  • M8

9 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

10 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

11 85804376

  • 85804376 - BALL JOINT
  • M8

12 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

13 84213933

  • 84213933 - TIE-ROD
  • M8 x 582mm L

14 85804375

  • 85804375 - BALL JOINT
  • M8

15 84213934

  • 84213934 - TIE-ROD
  • M8 x 396.6mm L

16 87482703

  • 87482703 - LEVER

17 87482731

  • 87482731 - BRACKET

18 87482735

  • 87482735 - TUBE

19 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

20 85827788

  • 85827788 - IDLER

21 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L

22 15970521

  • 15970521 - BOLT
  • Hex
  • M10 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

23 11190574

  • 11190574 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

24 85803215

  • 85803215 - LEVER

25 81855916

  • 81855916 - BUSHING
  • 30.17mm ID x 33.41mm OD x 25.4mm L
