New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

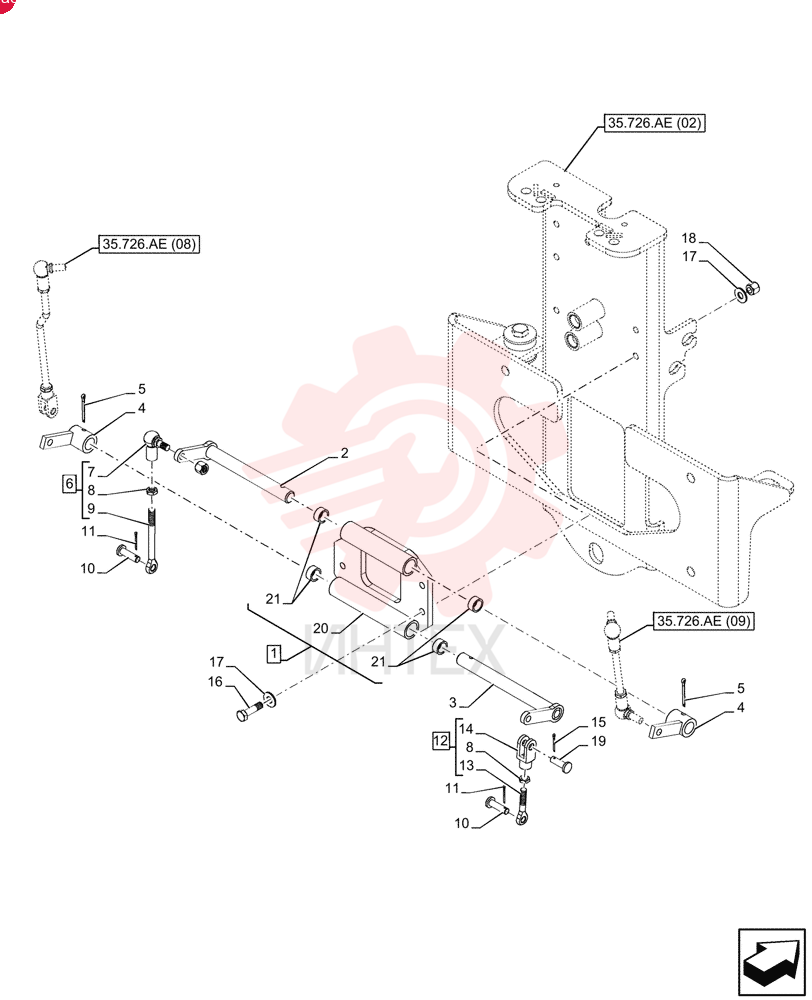

PLATE 84172519

PLATE 84172519

PLATE 84172519

1 84172519

  • 84172519 - PLATE

2 84172646

  • 84172646 - PIN
  • 16mm OD x 139.7mm L

3 84172645

  • 84172645 - PIN
  • 16mm OD x 162.7mm L

4 84172651

  • 84172651 - BRACKET

5 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L

6 84172632

  • 84172632 - THREADED ROD
  • M8 x 116.6mm L

7 85804375

  • 85804375 - BALL JOINT
  • M8

8 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

9 84172617

  • 84172617 - THREADED ROD
  • M8 x 126.5mm L

10 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

11 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

12 84172633

  • 84172633 - THREADED ROD
  • M8 x 32.2mm L

13 84172618

  • 84172618 - THREADED ROD
  • M8 x 42.2mm L

14 87602941

  • 87602941 - ADJUSTABLE CLEVIS
  • M8 x 16mm
  • Short

15 87016662

  • 87016662 - HAIR PIN COTTER
  • M2 x 18mm L

16 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

17 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

18 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

19 374834

  • 374834 - CLEVIS PIN
  • M8 x 22

20 NSS

  • NSS - NOT SOLD SEPARAT

21 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L
