New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

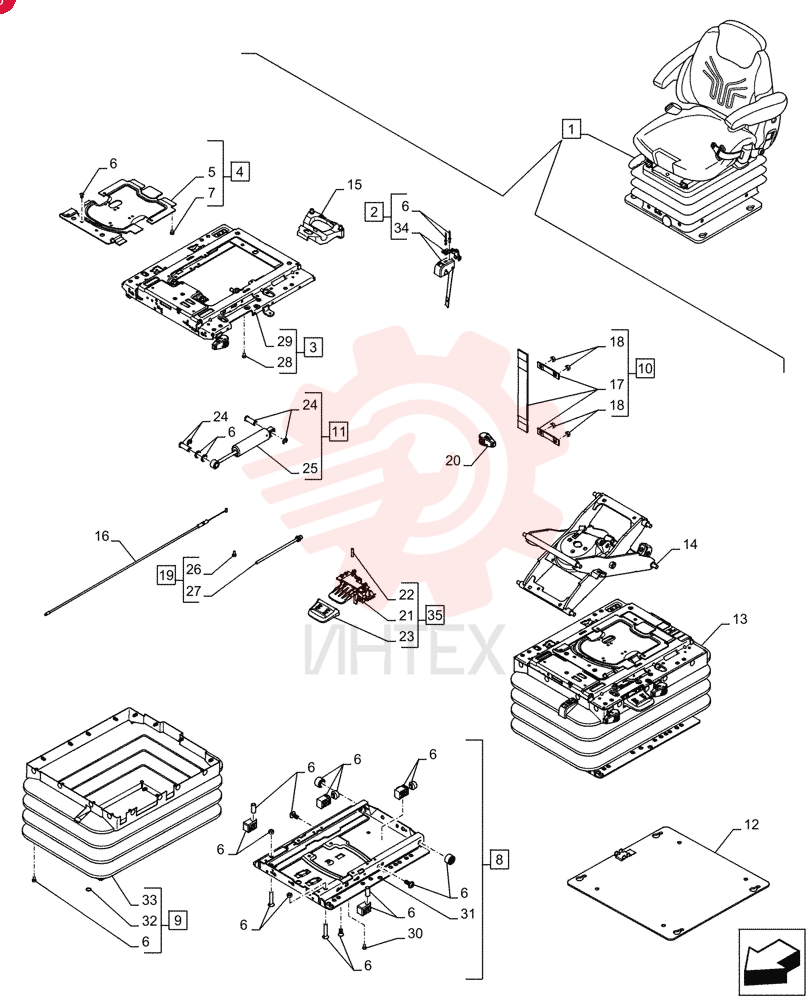

SEAT 84177696 (6)

SEAT 84177696 (6)

SEAT 84177696 (6)

1 84177696

  • 84177696 - SEAT

2 47931574

  • 47931574 - DRIVER SEAT

3 84190962

  • 84190962 - KIT

4 84255279

  • 84255279 - SUSPENSION

5 84190947

  • 84190947 - COVER

6 NSS

  • NSS - NOT SOLD SEPARAT

7 84190975

  • 84190975 - REPAIR KIT

8 84191006

  • 84191006 - REPAIR KIT

9 84190976

  • 84190976 - PLATE

10 84190978

  • 84190978 - BELLOWS

11 84280026

  • 84280026 - KIT

12 84191071

  • 84191071 - KIT

13 84332466

  • 84332466 - BASE PLATE

14 47931836

  • 47931836 - PLATE

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 84255280

  • 84255280 - THRUST BEARING

18 84190997

  • 84190997 - BOWDEN CONTROL

19 NSS

  • NSS - NOT SOLD SEPARAT

20 84280027

  • 84280027 - KIT

21 84190991

  • 84190991 - TUBE

22 82035123

  • 82035123 - HANDLE

23 NSS

  • NSS - NOT SOLD SEPARAT

24 84191017

  • 84191017 - REPAIR KIT

25 84191000

  • 84191000 - HANDLE

26 84253103

  • 84253103 - REPAIR KIT

27 NSS

  • NSS - NOT SOLD SEPARAT

28 84191016

  • 84191016 - REPAIR KIT

29 NSS

  • NSS - NOT SOLD SEPARAT

30 84191010

  • 84191010 - REPAIR KIT

31 NSS

  • NSS - NOT SOLD SEPARAT

32 84191014

  • 84191014 - REPAIR KIT

33 NSS

  • NSS - NOT SOLD SEPARAT

34 84191003

  • 84191003 - REPAIR KIT

35 NSS

  • NSS - NOT SOLD SEPARAT

36 NSS

  • NSS - NOT SOLD SEPARAT

37 345107A1

  • 345107A1 - LEVER
