New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

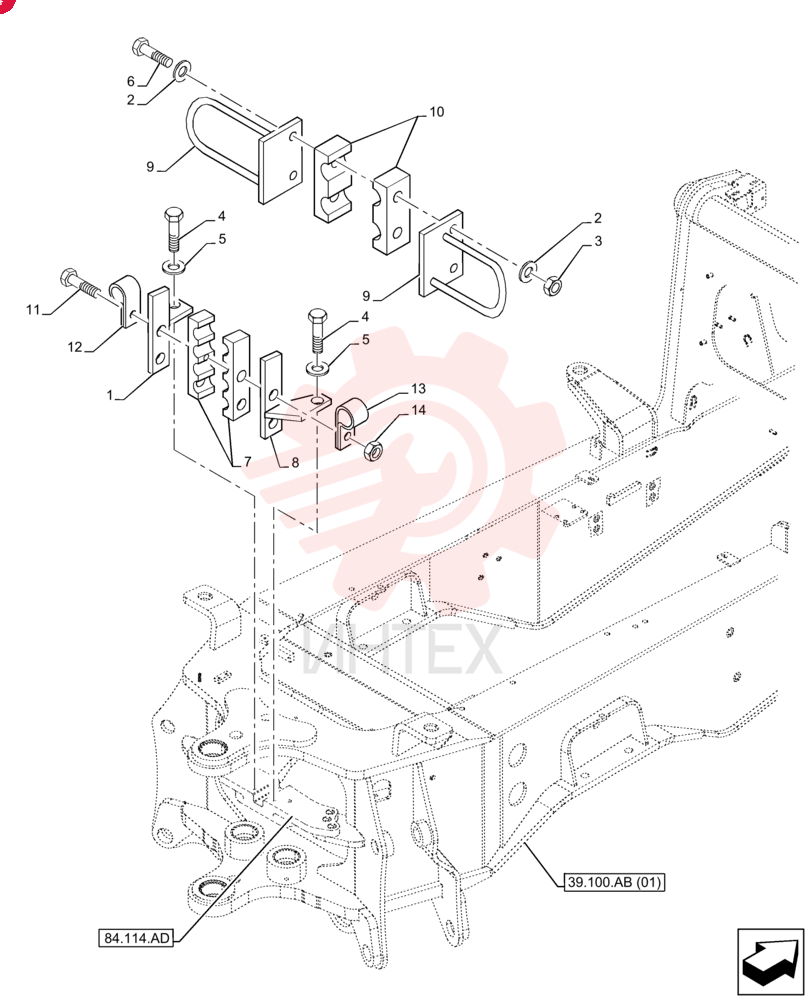

SUPPORT 84170567

SUPPORT 84170567

SUPPORT 84170567

1 84170567

  • 84170567 - SUPPORT

2 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

3 86629542

  • 86629542 - NUT
  • M8 x 1.25
  • Cl 8.8

4 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

5 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

6 120061

  • 120061 - BOLT
  • Hex
  • M8 x 60mm L
  • Cl 8.8

7 84165728

  • 84165728 - CLAMP
  • 121.5mm L x 30mm W x 15mm Thk

8 84170548

  • 84170548 - SUPPORT

9 85802214

  • 85802214 - SUPPORT

10 87631462

  • 87631462 - SUPPORT

11 43130

  • 43130 - BOLT
  • Hex
  • M8 x 1.25 x 50mm
  • Cl 8.8

12 85804947

  • 85804947 - CLAMP
  • 20mm ID

13 85802954

  • 85802954 - CLAMP
  • 12mm ID

14 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND
