(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

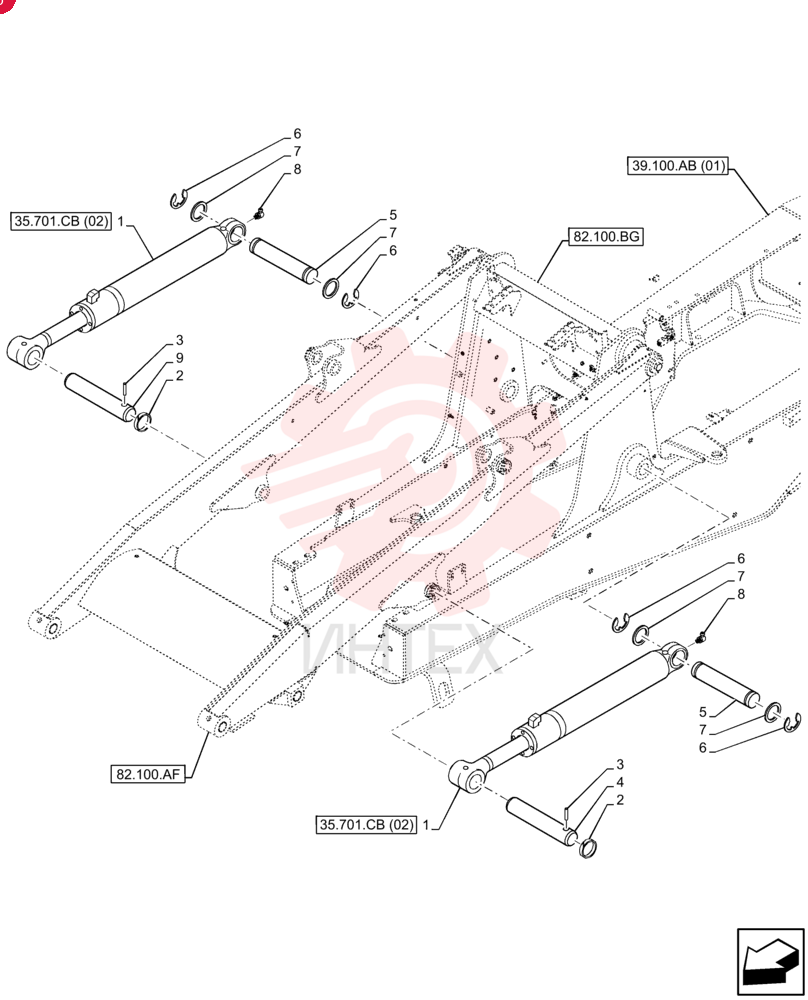

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (1)

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (1)

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (1)

1 87315525

  • 87315525 - HYDRAULIC CYLINDER
  • Double Acting
  • 50mm Rod
  • 90mm Bore
  • 726.7mm Stroke

2 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

3 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

4 85801050

  • 85801050 - PIN
  • 38.1mm OD x 183mm L

5 87402742

  • 87402742 - PIN
  • 50.87mm OD x 243mm L

6 47049094

  • 47049094 - CIRCLIP
  • M50 x 1.6mm Thk
  • Ext

7 495-81282

  • 495-81282 - WASHER
  • 2 1/16" x 3" x .109"

8 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

9 85801049

  • 85801049 - PIN
  • 38.1mm OD x 159mm L
