New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

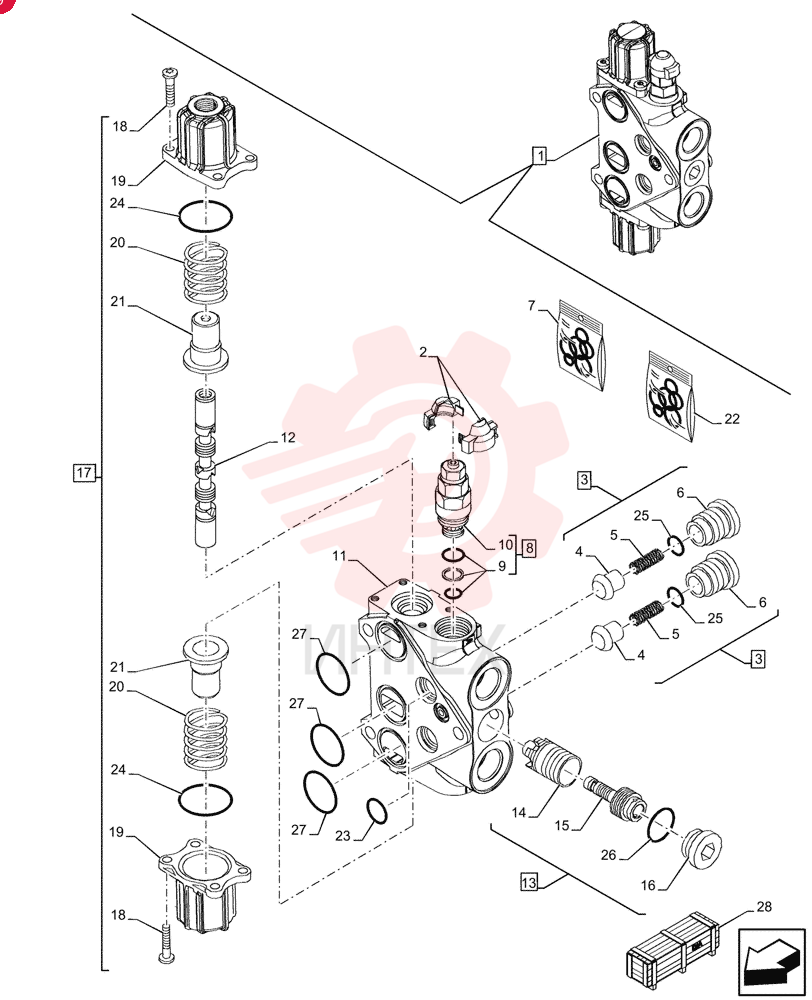

VALVE SECTION 87346911 (2)

VALVE SECTION 87346911 (2)

VALVE SECTION 87346911 (2)

1 87346911

  • 87346911 - VALVE SECTION

2 85811934

  • 85811934 - KIT
  • Half
  • Orange

3 85811938

  • 85811938 - KIT
  • Check Valve

4 NSS

  • NSS - NOT SOLD SEPARAT

5 NSS

  • NSS - NOT SOLD SEPARAT

6 NSS

  • NSS - NOT SOLD SEPARAT

7 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete

8 85812116

  • 85812116 - VALVE PRESSURE RELIE

9 85811933

  • 85811933 - SEAL KIT
  • Secondary Valve

10 NSS

  • NSS - NOT SOLD SEPARAT

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 85819378

  • 85819378 - KIT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 87346914

  • 87346914 - KIT

18 NSS

  • NSS - NOT SOLD SEPARAT

19 NSS

  • NSS - NOT SOLD SEPARAT

20 NSS

  • NSS - NOT SOLD SEPARAT

21 NSS

  • NSS - NOT SOLD SEPARAT

22 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

23 NSS

  • NSS - NOT SOLD SEPARAT

24 NSS

  • NSS - NOT SOLD SEPARAT

25 NSS

  • NSS - NOT SOLD SEPARAT

26 NSS

  • NSS - NOT SOLD SEPARAT

27 NSS

  • NSS - NOT SOLD SEPARAT

28 741741199

  • 741741199 - CONSTRUCTION DIA

29 741741209

  • 741741209 - KIT

30 741741129

  • 741741129 - CONSTRUCTION DIA

31 741741149

  • 741741149 - CONSTRUCTION DIA

32 741708039

  • 741708039 - DIA KIT
  • MHEX
