New Holland Construction
/

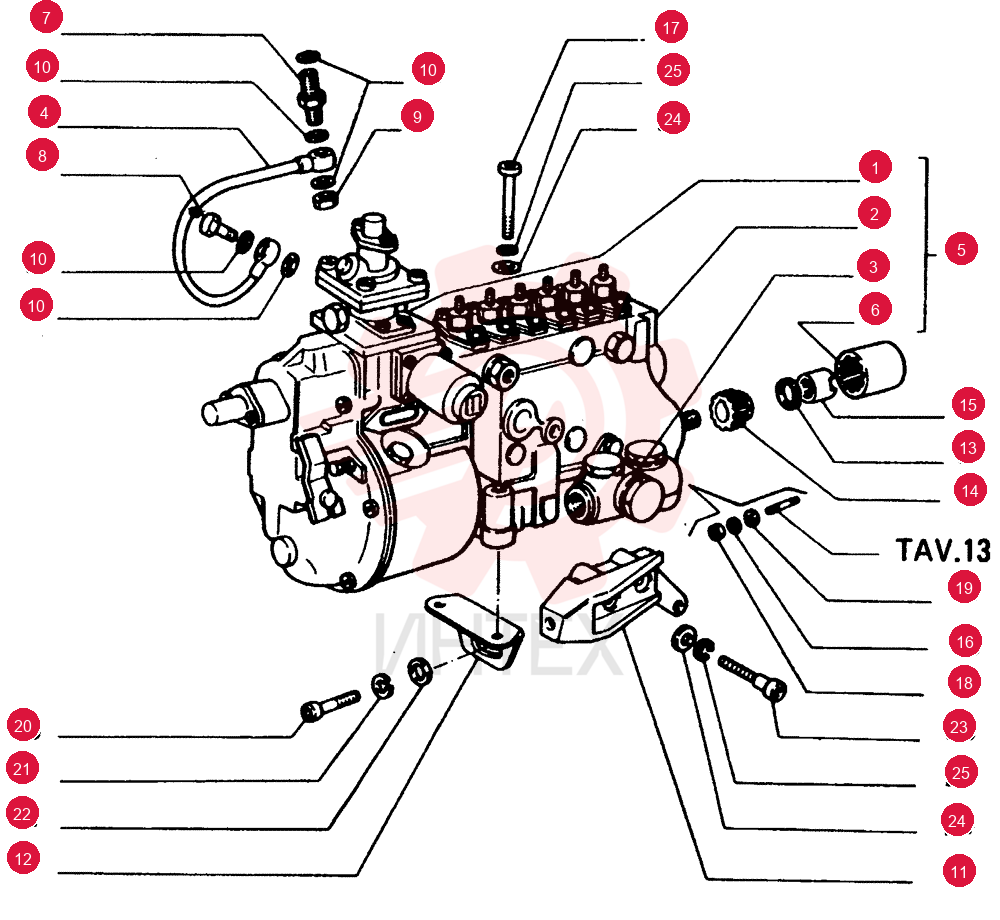

(FD14E) - CRAWLER DOZER
/
NUT 83956269

NUT 83956269

NUT 83956269

1 83956269

  • 83956269 - NUT

2 2

  • 2 - STEP

3 772173

  • 772173 - TUBE

4 4809521

  • 4809521 - RIGID TUBE

5 4845291

  • 4845291 - FUEL INJECTION PUMP

6 4816287

  • 4816287 - SPLINED BUSHING

7 10180217

  • 10180217 - BANJO BOLT

8 10181714

  • 10181714 - BANJO BOLT

9 10183217

  • 10183217 - NUT
  • Banjo
  • M12 x 1.5
  • 2-Way

10 10296160

  • 10296160 - SEALING WASHER
  • M12.2 x 18 x 1
  • Copper

11 4817374

  • 4817374 - SUPPORT

12 4750518

  • 4750518 - BRACKET

13 4750525

  • 4750525 - WASHER

14 4750526

  • 4750526 - BUSHING

15 4750524

  • 4750524 - NUT

16 759850

  • 759850 - WASHER

17 16044921

  • 16044921 - BOLT
  • Hex
  • M8 x 1.25 x 85mm
  • Cl 8.8

18 12164711

  • 12164711 - NUT
  • M10 x 1.25
  • Cl 8

19 11198371

  • 11198371 - BELLEVILLE WASHER
  • Belleville
  • M10.5

20 15540521

  • 15540521 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd

21 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

22 12646921

  • 12646921 - WASHER
  • 12.2mm ID x 28mm OD x 3mm Thk

23 16043921

  • 16043921 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

24 12646704

  • 12646704 - WASHER
  • 8.15mm ID x 20mm OD x 2mm Thk

25 11193879

  • 11193879 - BELLEVILLE WASHER
  • Belleville
  • M8.4
