New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

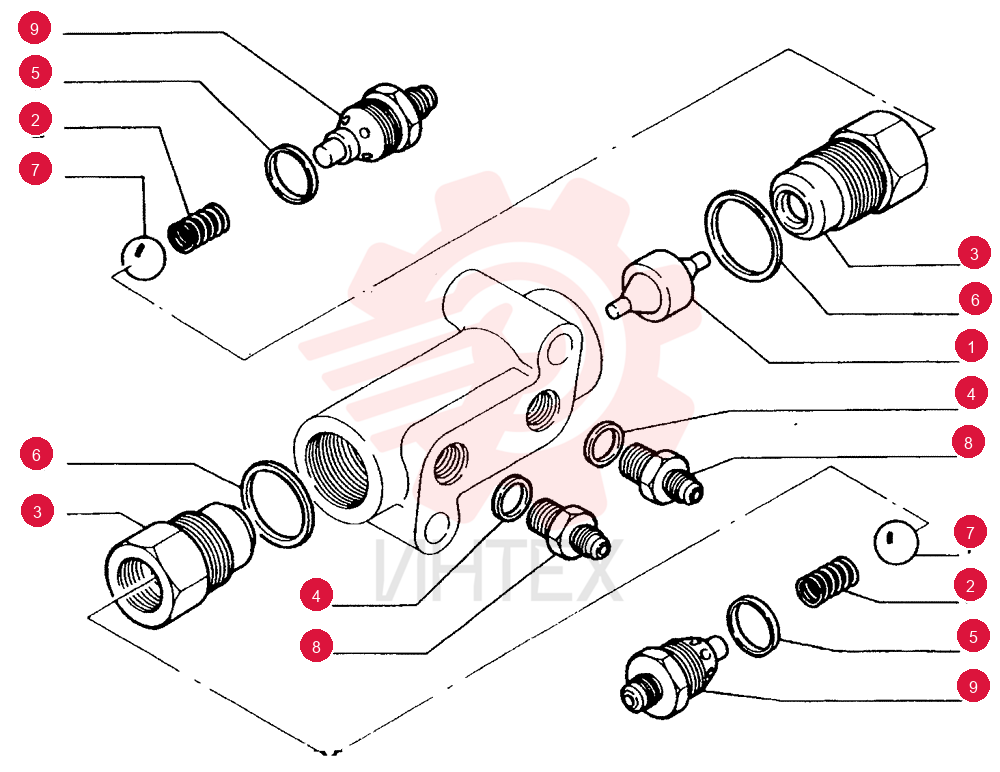

PLUNGER 8288932

PLUNGER 8288932

PLUNGER 8288932

1 8288932

  • 8288932 - PLUNGER

2 8288935

  • 8288935 - SPRING

3 8293493

  • 8293493 - BALL SOCKET

4 14457180

  • 14457180 - O-RING
  • 0.103" Thk x 0.549" ID
  • -113
  • Cl 5
  • 75 Duro

5 14457980

  • 14457980 - O-RING
  • 0.103" Thk x 1.049" ID
  • -121
  • Cl 5
  • 75 Duro

6 14458380

  • 14458380 - O-RING
  • 0.103" Thk x 1.299" ID
  • -125
  • Cl 5
  • 75 Duro

7 20063530

  • 20063530 - BALL

8 76011720

  • 76011720 - HYD CONNECTOR

9 76011721

  • 76011721 - PLUG
